Expanded PTFE Sealing Cord

Taifno specializes in the R&D and manufacturing of various PTFE sealing products. Our expanded PTFE sealing cord is designed to handle rough, pitted, or deformed surfaces and fits irregular or damaged flanges; it can be cut to length on-site and pressed into place, eliminating the need to stock hundreds of specifications or wait for custom orders. We offer factory-direct pricing and provide technical support services.

    Expanded PTFE Sealing Cord — cut-to-length sealing for irregular, damaged or non-standard flanges. pH 0–14 · -196 °C to +200 °C · up to 100 bar liquid.

    Get a Quote

    Flexible Sealing for Flanges That Pre-Cut Gaskets Can't Match

    Pre-cut gaskets are often difficult to match for irregular flanges, damaged sealing surfaces, or custom equipment. Expanded PTFE sealing cord provides a flexible alternative by allowing users to cut the required length on-site and form a gasket directly according to the sealing area. Its soft expanded structure adapts to rough, pitted, and uneven surfaces while maintaining reliable sealing with low bolt torque.

    Made from ePTFE, the cord delivers excellent chemical resistance across pH 0–14 media, with a temperature range of -196 °C to +200 °C and pressure capability up to 100 bar. Contact Taifno today to get a fast sealing solution for maintenance and non-standard applications.

    -196 °C to +200 °C Up to 100 bar (liquid) pH 0–14 100% Virgin PTFE FDA Grade Available

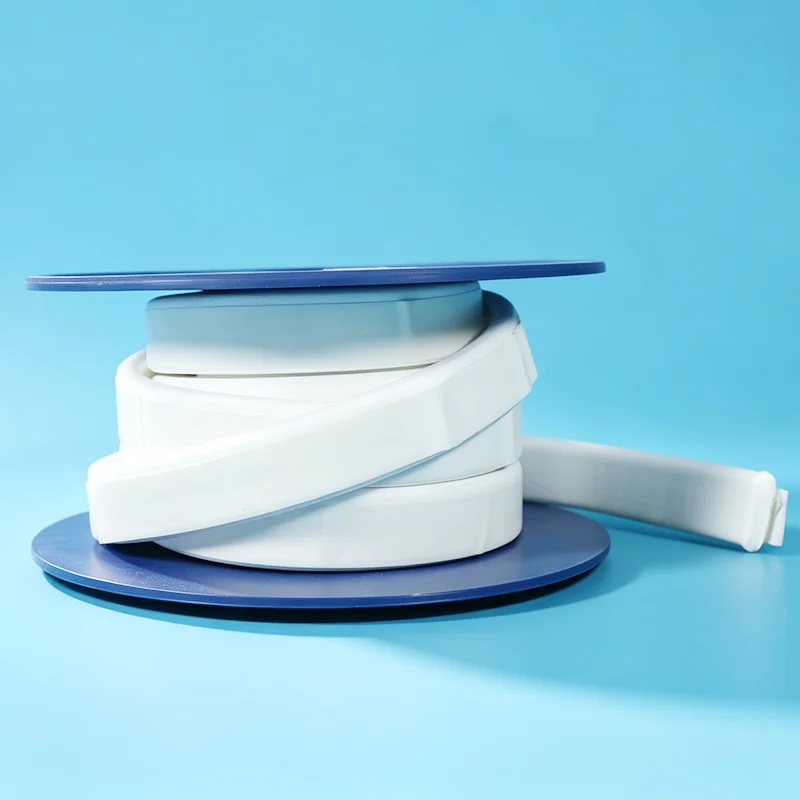

    Expanded PTFE Sealing Cord
    Expanded PTFE sealing cord — cut to length and form a gasket on site.

    How Expanded PTFE Cord Provides Flexible Sealing

    Expanded PTFE Sealing Cord is a continuous sealing material manufactured from 100% pure PTFE resin through an expansion process. Its soft micro-porous structure provides excellent compressibility and flexibility, allowing the cord to adapt to irregular sealing areas, gaps, and complex flange geometries while maintaining reliable sealing performance.

    Designed for easy field installation, the cord can be cut to the required length, placed directly into the sealing groove or flange area, and compressed during assembly to form a durable gasket. The self-adhesive option helps keep the cord in position, especially for vertical surfaces or difficult installation conditions.

    Key Advantages

    1

    Flexible Shape Adaptation

    The compressible structure fills uneven surfaces and sealing gaps that are difficult to cover with standard pre-cut gaskets.

    2

    100% Pure PTFE Material

    Free from fillers and graphite, providing excellent chemical resistance and preventing contamination risks.

    3

    Wide Temperature Capability

    Remains flexible at cryogenic temperatures down to -196 °C while maintaining sealing performance.

    4

    Long-Term Stability

    Resists creep and cold flow better than conventional PTFE, helping maintain sealing force during extended service.

    Why Choose Expanded PTFE Cord?

    Compared with stocking hundreds of pre-cut gasket sizes, one roll of expanded PTFE cord covers most maintenance needs and is cut exactly to the sealing area.

    Problem How ePTFE Cord Solves It
    Hundreds of gasket sizes to stock One roll replaces thousands of pre-cut gaskets — 4–6 cord sizes cover most applications
    Custom shapes take too long Cut to length on-site — no waiting
    Damaged or warped flanges leak Soft, conformable material fills scratches, pits, and irregularities
    Cut gaskets waste material Cut exactly what you need — zero waste
    Fragile flanges crack under high torque Seals with low bolt pressure — ideal for glass-lined and plastic flanges
    Costly downtime waiting for gaskets Immediate availability — no waiting for custom cutting

    Try a Roll Before You Standardize

    Send your flange size, media and temperature. Taifno will recommend the cord cross-section (Ø 2.4–25 mm round, square or tape) and ship a sample for on-site trial.

    Request a Free Sample

    Comparison & Selection Guide

    ePTFE Cord vs Pre-Cut Gaskets vs Conventional PTFE

    Feature ePTFE Cord Pre-Cut Gaskets Conventional PTFE Sheet
    Inventory One roll — replaces hundreds of sizes Every size must be stocked Multiple thicknesses and sizes
    Custom Shapes Cut on-site — fits any shape Requires custom tooling or waiting Must be cut from sheet
    Conformability ★★★★★ fills scratches and pits ★☆☆☆☆ rigid ★☆☆☆☆ rigid
    Cold Flow ✅ No creep N/A ❌ Creeps under load
    Temperature -196 °C to +200 °C Depends on material -180 °C to +200 °C
    Chemical Resistance pH 0–14 Depends on material pH 0–14
    Waste Zero Significant Significant
    Total Cost Lowest Highest Moderate

    Quick Selection Guide

    If Your Application Is… Choose…
    Damaged, scratched, or warped flanges ePTFE Cord
    Glass-lined, ceramic, or plastic flanges ePTFE Cord — low bolt pressure
    Large diameter flanges (over 24") ePTFE Cord — no custom gasket waiting
    Odd-shaped or non-standard flanges ePTFE Cord — cut to fit any shape
    Clean, smooth flanges, standard sizes Pre-cut gaskets

    Size Selection Guide

    Flange Surface Condition Recommended Cord Size
    Smooth, flat flanges 1/3 of gasket contact area (W)
    Rough, pitted, or scored flanges 1/2 of gasket contact area (W)
    Narrow flanges (≤ 7 mm contact area) Full width gasket can be used

    Primary Applications

    Industry Application
    Chemical Processing Pipe flanges, reactor covers, heat exchangers — acids, solvents
    Pharmaceutical Sterile equipment, bioreactors — FDA compliance
    Food & Beverage Sanitary connections, filling equipment — FDA compliance
    Pulp & Paper Large diameter flanges, digesters — thermal cycling
    Power Generation Steam systems, condenser flanges — high temperature
    Glass-lined Equipment Reactors, vessels — fragile surfaces, low torque
    Taifno PTFE factory production area
    PTFE production area.
    Taifno PTFE molding equipment
    Molding equipment.
    Taifno PTFE batch control
    Material handling and batch control.
    Taifno finished gasket stock
    Finished gasket stock.

    Application Cases

    Case Study 1: Chemical Plant — Eliminated Inventory Costs

    Challenge: A chemical plant stocked 100+ gasket sizes for 20+ flange sizes. Inventory was expensive and space-consuming. Non-standard flanges caused days of downtime waiting for custom gaskets.

    Solution: Replaced all cut gaskets with expanded PTFE cord. Stocked 4 cord sizes instead.

    Result: Inventory cost reduced by 80%. Downtime reduced from days to hours. One cord covered multiple flange sizes.

    Case Study 2: Glass-Lined Reactor — Eliminated Flange Damage

    Challenge: A pharmaceutical plant was cracking glass-lined reactor covers due to high torque required to seal rigid PTFE gaskets.

    Solution: Switched to Expanded PTFE Sealing Cord with self-adhesive backing. Low bolt pressure required.

    Result: Zero glass lining damage. Perfect seal with lower torque. 18 months and counting — no replacements.

    Note: Actual case results vary by application conditions. Contact us for application-specific recommendations.

    Technical Specifications

    ePTFE Sealing Cord Properties

    Temperature Range-196 °C to +200 °C
    Pressure — LiquidUp to 100 bar
    Pressure — GasUp to 16 bar
    pH Range0–14
    Density0.7 – 1.0 g/cm³
    Tensile Strength≥ 7 MPa
    Elongation at Break≥ 120%
    Material100% Virgin PTFE (expanded)
    FDA Grade AvailableYes

    Available Sizes

    Cross-Section Shape Size Range Common Applications
    Round Cord Ø 2.4 mm to Ø 25 mm Standard flange sealing, valve packing
    Square / Rectangular 3 mm × 1.5 mm to 50 mm × 50 mm Wide flange applications
    Tape / Strip 1.5–7 mm thick × 2–1500 mm wide Large area sealing, manways

    Quality Assurance

    ✓

    100% Virgin PTFE Resin

    No regrind, no recycled material. Consistent quality.

    ✓

    Full Traceability

    Every batch traceable. Material certificates on request.

    ✓

    FDA-Compliant Grades

    Meets FDA 21 CFR 177.1550 and BfR requirements.

    ✓

    Precision Manufacturing

    Continuous process ensures consistent density and compressibility.

    ✓

    Long Shelf Life

    Unlimited shelf life — no degradation over time.

    ✓

    Quality Tested

    Tensile strength, density, and compressibility tested per batch.

    PTFE material testing
    Material testing.
    PTFE dimensional inspection
    Dimensional inspection.
    PTFE batch traceability
    Batch traceability records.
    PTFE final quality check
    Final quality check.

    FAQ

    When should expanded PTFE sealing cord be used?

    When to use it: Irregular surfaces, damaged flanges, nonstandard sizes, large-diameter flanges, glass-lined / plastic flanges requiring low torque.

    When NOT to use it: High-pressure dynamic sealing (moving parts), static seal only.

    How much does ePTFE sealing cord cost, what is the lead time?

    Cost depends on diameter / cross-section, length per roll, and quantity. A single roll typically costs less than stocking 10 different gasket sizes.

    Total cost view: The cord costs more per meter than standard gasket sheet. But you cut exactly what you need, zero waste, zero waiting, zero custom tooling. Over a year, inventory, downtime, and waste savings exceed the material cost.

    Lead time: In stock ships within 24–48 hours. Shipping: air 5–10 days, sea 15–30 days.

    What are the limits and the most common mistakes?

    Temperature: -196 °C to +200 °C (short-term +315 °C).

    Pressure: up to 100 bar (liquid), 16 bar (gas).

    Chemical: pH 0–14, universal resistance, except molten alkali metals and fluorine.

    Three common mistakes: (1) Wrong size — cord should be 1/3 to 1/2 of gasket contact area. (2) Over-tightening — ePTFE seals with low torque; over-tightening damages the cord. (3) Improper end joining — ends should cross at a bolt hole location. For damaged surfaces, overlap at the scored area or double-up.

    Not Sure Which Cord Size Fits Your Flange?

    Send your flange width, surface condition, media and operating temperature. Taifno's engineers will confirm the cross-section, self-adhesive option and roll length — usually within one working day.

    • Round, square or tape cross-section
    • Self-adhesive backing for vertical surfaces
    • FDA grade for food and pharmaceutical lines
