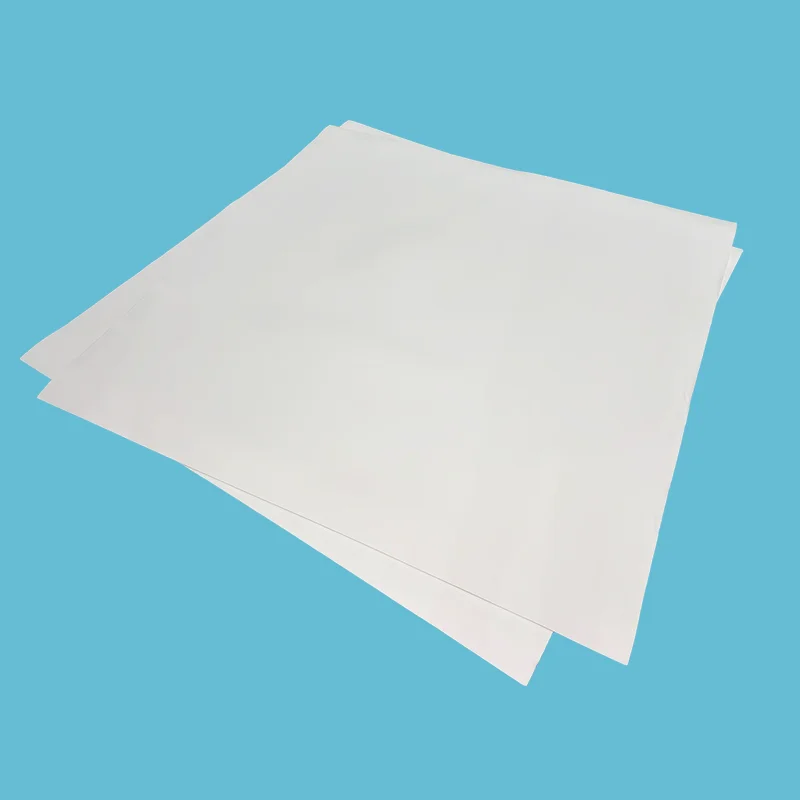

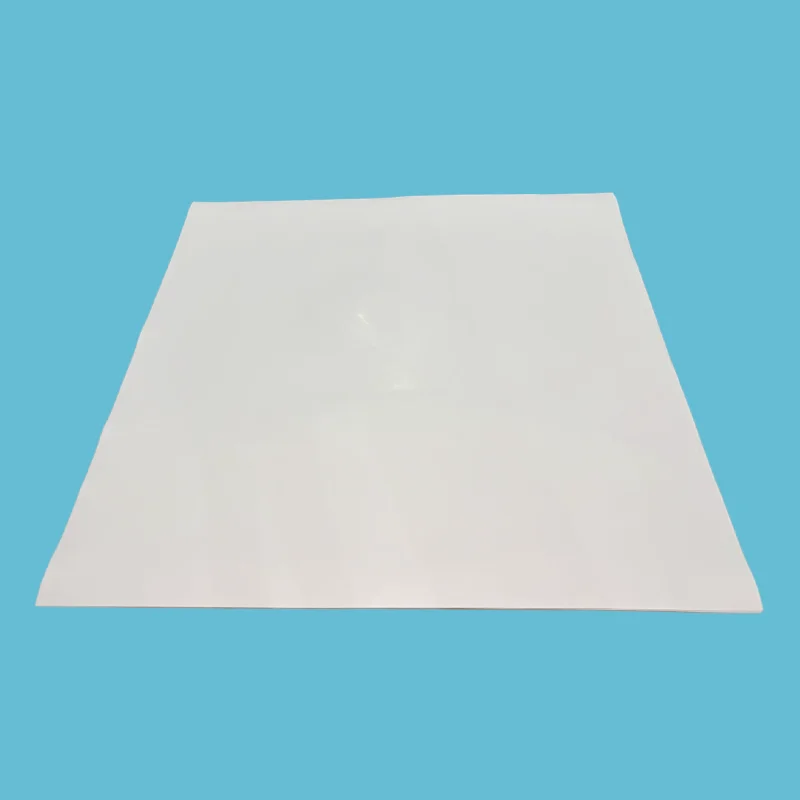

Expanded PTFE Sheet

Taifno is a Chinese factory specializing in the direct supply of expanded PTFE sheets. We offer OEM customization services and provide comprehensive PTFE sealing solutions for various industries. Our ePTFE sheets serve as a versatile alternative to many other materials; they can be cut on-site into any shape and withstand temperatures ranging from -196°C to +200°C, pressures up to 20 MPa, and media across the full pH 0–14 range. They feature a compressibility of 45% ± 5% and exhibit no cold flow.
    Expanded PTFE Sealing Material

    Expanded PTFE Sheet for Adaptable, Low-Torque Sealing

    For applications involving uneven flanges, fragile sealing surfaces, extreme temperatures, or aggressive chemicals, expanded PTFE sheet provides a versatile sealing solution that combines adaptability, durability, and chemical resistance in a single material.

    Unlike rigid PTFE materials, the expanded structure provides excellent flexibility and compressibility, allowing the sheet to adapt to rough, scratched, pitted, and uneven flange surfaces.

    If you are looking for ePTFE products manufacturer and supplier, Taifno is a good choice, we will reply to your inquiry within 24 hours.

    Explore Taifno’s expanded PTFE product range, or submit your flange conditions through our application inquiry form for material and thickness recommendations.

    Expanded PTFE Sheet at a Glance

    A soft, conformable sheet made from expanded virgin PTFE for static sealing on rough, fragile and irregular flange surfaces.

    • 100% virgin expanded PTFE
    • Low bolt-load sealing
    • Cut to custom shapes on-site
    • Self-adhesive backing available
    • Continuous range from -196°C to +200°C
    Expanded PTFE Sheet
    Expanded PTFE Sheet
    Material Structure

    Why Does an Expanded PTFE Sheet Deliver Superior Sealing Performance?

    The expanded micro-fibril network helps the material conform to flange imperfections under lower bolt pressure.

    Expanded PTFE Sheet is manufactured from 100% virgin PTFE resin through a specialized expansion process that transforms the dense PTFE structure into a flexible micro-fibril network. This unique multidirectional fiber structure combines softness and compressibility with the chemical stability and durability of PTFE.

    The expanded fiber network allows the material to adapt naturally to flange surface imperfections. Under low bolt pressure, the soft structure fills scratches, pits, and uneven areas to create a reliable sealing barrier.

    After compression, the material maintains excellent recovery performance, helping prevent leakage caused by pressure changes, temperature cycling, and long-term service conditions.

    1. Pure PTFE Composition

    Made from 100% virgin PTFE without fillers or binders, ensuring excellent chemical compatibility and preventing contamination risks.

    2. Superior Surface Adaptability

    The soft and flexible structure conforms to irregular flange surfaces, making it suitable for fragile equipment and low-torque sealing applications.

    3. Reliable Long-Term Sealing

    The expanded structure reduces creep and cold flow, helping maintain sealing performance over extended operation.

    4. Easy Installation

    Self-adhesive backing options are available to improve positioning stability during installation, especially on vertical or overhead flange surfaces.

    Problem-Based Selection

    Why Choose Expanded PTFE Sheet?

    Compare common flange and gasket problems with the sealing characteristics provided by expanded PTFE sheet.

    View ePTFE Products
    Standard PTFE creeps and leaks

    Micro-porous structure resists cold flow — maintains seal over time

    Rough, pitted flanges leak

    Soft material fills irregularities — seals without high torque

    Glass-lined flanges crack under high torque

    Seals with low bolt pressure — protects fragile surfaces

    Conventional gaskets require multiple sizes

    One sheet — cut to any shape, any size, on-site

    Standard gasket material fails in chemicals

    100% pure PTFE — pH 0-14 universal resistance

    Installation requires skilled labor

    Easy to cut, easy to install, self-adhesive available — simple and fast

    ePTFE Sheet vs Conventional PTFE

    Swipe horizontally on mobile
    Feature ePTFE Sheet Conventional PTFE Sheet Why It Matters
    Conformability ★★★★★
    fills scratches and pits
    ★☆☆☆☆
    rigid
    Seals on damaged flanges without grinding or machining
    Creep Resistance ✓ No cold flow ✕ Creeps under load No bolt re-torquing. No leaks over time
    Sealing on Rough Flanges ✓ Excellent ✕ Poor — requires perfect flanges Works on flanges that would leak with standard PTFE
    Total Cost (3-year) Lowest — one sheet replaces many sizes Moderate Less inventory, less waste, less downtime

    Quick Selection Guide

    Select by flange and operating condition
    If Your Application Is... Choose...
    Damaged, scratched, or warped flanges ePTFE Sheet — fills irregularities, low torque
    Glass-lined, ceramic, or plastic flanges ePTFE Sheet — low bolt pressure, conformable, safe
    Large-diameter flanges or odd shapes ePTFE Sheet — cut to fit any shape on-site
    High-temperature cycling (+200°C to +315°C) ePTFE Sheet — maintains seal, no creep
    Chemical, pharmaceutical, or food processing ePTFE Sheet — pure PTFE, FDA-compliant
    Clean, smooth flanges, standard sizes, low cost Conventional PTFE sheet

    Primary Applications

    Typical industries and sealing requirements
    Industry Application Key Requirement
    Chemical Processing Pipe flanges, reactor covers, heat exchangers — acids, solvents Universal chemical resistance, low torque, rough flanges
    Pharmaceutical Sterile equipment, bioreactors — FDA compliance Pure PTFE, non-contaminating, FDA 21 CFR 177.1550
    Food & Beverage Sanitary connections, filling equipment — FDA compliance Pure ePTFE, easy cleaning, no contamination
    Pulp & Paper Large diameter flanges, digesters — thermal cycling Conformability, temperature cycling
    Power Generation Steam systems, condenser flanges — high temperature Wide temperature range, creep resistance
    Glass-lined Equipment Glass-lined reactors, vessels — fragile surfaces Low bolt pressure, conformability, no glass damage
    Cryogenic Service LNG, liquid oxygen — extreme cold Non-brittle at cryogenic temperatures
    Application Examples

    Real-World Applications

    Examples of expanded PTFE sheet used to address creep, leakage, fragile flange surfaces and high installation torque.

    Explore Applications
    Case Study 1

    Chemical Plant — Eliminated Creep and Leakage

    Client

    A chemical plant handling acids and solvents (fortune 500 chemical company)

    Challenge

    Conventional PTFE gaskets on heat exchanger flanges were replaced every 6 months due to creep deformation and leakage. High temperatures and pressure cycling caused cold flow, bolt torque loss, and leakage. Maintenance cost: $5,000 per flange per year.

    Solution

    Replaced with expanded PTFE sheet, custom cut to gasket shape. The soft, conformable material filled flange irregularities. Low bolt torque required.

    Result

    Zero leakage for 18 months. No bolt re-torquing required. Creep eliminated. Estimated cost savings: $7,500/year per flange.

    Case Study 2

    Glass-Lined Reactor — Eliminated Flange Damage

    Client

    A pharmaceutical manufacturer with multiple glass-lined reactors

    Challenge

    Glass-lined reactor covers were cracking due to high torque required to seal rigid PTFE gaskets. Each glass repair cost $8,000 plus production downtime.

    Solution

    Installed expanded PTFE sheet with self-adhesive backing. Cut to fit reactor manway flange. Low bolt pressure required, eliminated stress on the glass lining.

    Result

    Zero glass damage. Perfect seal with lower torque. Installation time reduced by 80%. No replacements in 18 months. Saved $16,000 in glass repair costs.

    Note: Actual case results vary by application conditions. Contact us for application-specific recommendations.

    Material and Operating Data

    Technical Specifications

    Review temperature, pressure, density, compressibility, recovery, material composition and available dimensions before selection.

    Request Technical Review
    Parameter Value
    Temperature Range — Continuous -196°C to +200°C
    Temperature Range — Short-Term Up to +315°C
    Pressure — Max 20 MPa
    pH Range 0-14 — universal chemical resistance
    Density 0.7-1.0 g/cm³
    Compressibility 45% ± 5% (ASTM F36)
    Recovery ≥10% (ASTM F36)
    Tensile Strength ≥10 MPa
    Material 100% Virgin PTFE (expanded)
    FDA Compliant Yes — meets FDA 21 CFR 177.1550
    Color White/off-white

    Available Sizes

    Custom dimensions available
    Size (mm) Thickness Range (mm)
    1500 × 1500 0.5 — 6
    1500 × 4500 0.5 — 6
    1800 × 5400 0.5 — 6
    2000 × 2000 0.5 — 6
    Custom sizes available on request

    Quality Assurance

    Material control, batch traceability, testing and optional adhesive backing support consistent sheet production.

    01

    100% Virgin PTFE Resin — no regrind, no recycled material. Consistent quality, batch after batch.

    02

    Full Traceability — Every batch traceable from raw material to finished sheet. Material certificates on request.

    03

    FDA-Compliant Grade — Meets FDA 21 CFR 177.1550 for food and pharmaceutical applications.

    04

    Tested to International Standards — ASTM F36 (compressibility/recovery), ASTM F152 (tensile strength), ASTM D792 (density).

    05

    Long Shelf Life — Unlimited shelf life — no degradation over time.

    06

    Self-Adhesive Option — Available with pressure-sensitive adhesive backing for easy vertical installation.

    More information about production control and inspection is available on Taifno’s quality assurance page.

    Selection Questions

    Expanded PTFE Sheet FAQ

    Review recommended uses, cost factors, lead times, operating limits and common installation mistakes.

    What is ePTFE sheet and when should I use it?

    A: The ePTFE sheet is a soft, conformable sealing sheet made from 100% expanded PTFE. Cut to size on-site and press onto flange face. Seals on rough, pitted, or warped flanges with low bolt torque, where conventional PTFE leaks. One sheet replaces many gasket materials.

    When to use it: Damaged flanges, glass-lined flanges, large diameter flanges, low torque applications, thermal cycling, and chemical service.

    When NOT to use it: High pressure dynamic sealing (moving parts), static seal only.

    How much does an expanded PTFE sheet cost and what is the lead time?

    A: Cost depends on thickness, size, quantity, and whether self-adhesive backing is required.

    Comparison: One ePTFE sheet typically costs about the same as stocking 8-10 different cut gasket sizes. But one sheet covers 80%+ of your flange sizes, you cut what you need, zero waste, zero waiting. Over a year, customers typically save 40-60% on total gasket costs vs. stocking multiple sizes.

    Lead time:

    In stock: ships within 24-48 hours.

    Shipping: air 5-10 days, sea 15-30 days.

    Send us your size and application, we quote within 24 hours.

    What are the limits and the most common installation mistakes?
    Temperature

    -196°C to +200°C continuous; up to +315°C for short-term service.

    Pressure

    up to 20 MPa.

    Chemical

    pH 0-14, universal resistance, except molten alkali metals and elemental fluorine.

    Three common mistakes:

    (1) Using wrong thickness: for rough surfaces, use thicker sheet or double-up; for smooth flanges, standard thickness works.

    (2) Over-tightening: ePTFE seals with low torque; over-tightening can damage the sheet and cause leaks.

    (3) Not supporting the sheet during installation: self-adhesive backing holds it in position; without it, the sheet may shift.

    Self-adhesive tip: For vertical or overhead flanges, use self-adhesive backed sheet, peel the backing film, press firmly onto the flange surface, and it stays in position during assembly.

    Turn Your Flange Conditions into an ePTFE Sheet Recommendation

    Instead of selecting by thickness alone, send the actual operating and flange conditions. Taifno can review the application and recommend a suitable sheet size, thickness and adhesive configuration.

    Flange dimensions Surface condition Operating pressure Continuous and peak temperature Process medium Required quantity
    Need help choosing sheet thickness?

    Send your operating data and flange details for a focused selection discussion.

    Start an Application Review Recheck Technical Data
