Braided Virgin PTFE Packing

Braided Virgin PTFE packing features a soft texture, a low coefficient of friction, and exceptional chemical stability. It provides effective sealing for pumps, valves, and agitators and is suitable for virtually all chemical media, including acids, solvents, alkalis, water, and steam, as well as food and pharmaceutical applications (FDA-certified grades available). Contact Taifno for customized solutions and factory-direct pricing.
    Rating: 5.0
    (Rating Count: 1)

    Braided Virgin PTFE Packing for Clean Chemical, Food and Pharma Service

    As a professional Braided Virgin PTFE Packing manufacturer based in China, Taifno supplies high-quality sealing solutions directly from our factory. Our packing is white in color and suitable for applications involving clean chemical media. It withstands temperatures from -180 °C to +200 °C and pressures up to 200 bar, offers a pH range of 0–14 (providing full chemical resistance), and supports linear speeds of up to 20 m/s (static) or 12 m/s (dynamic). We support customized sizes and OEM orders, and we are pleased to offer a discount on bulk orders to ensure an affordable total cost for your maintenance team.

    Temperature-180 °C to +200 °C
    PressureUp to 200 bar
    pH Range0–14
    Speed20 m/s static / 12 m/s dynamic

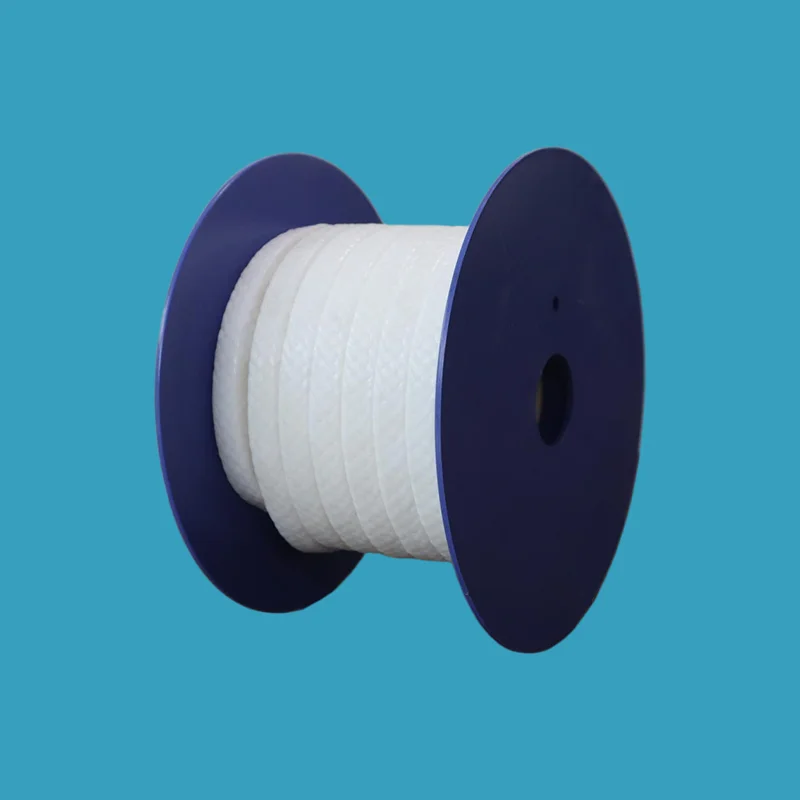

    Braided Virgin PTFE Packing
    Braided virgin PTFE packing supplied directly from the manufacturer.

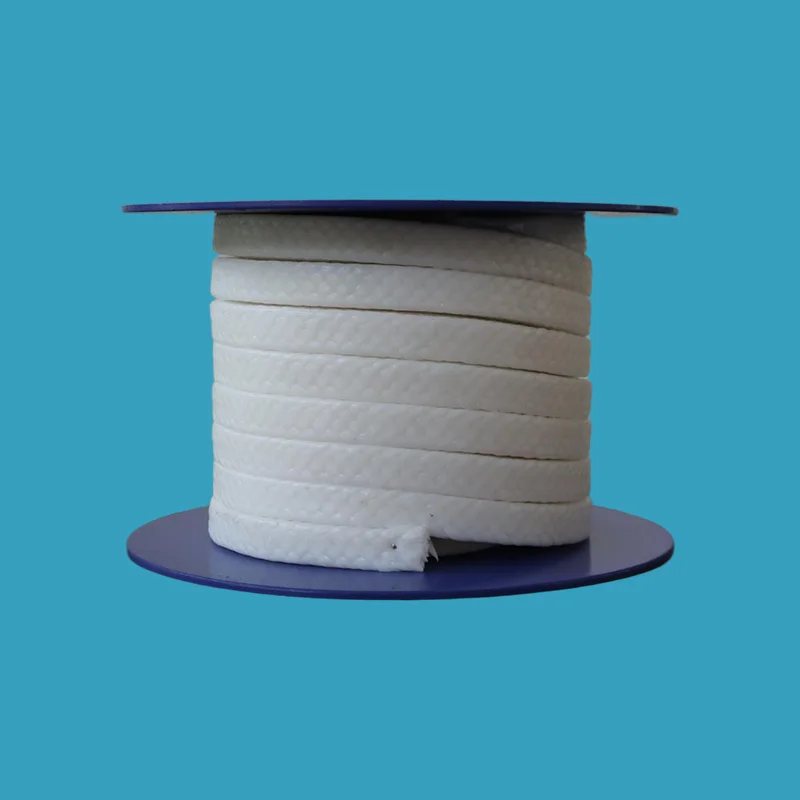

    Braided Virgin PTFE Packing
    Interlocking braid for uniform shaft contact and reliable sealing.

    What Is PTFE Packing?

    PTFE packing is braided from high-quality PTFE fibers, soft, low-friction, and chemically inert. It seals pumps, valves, and mixers against almost all chemicals, from acids to solvents. It is the go-to sealing solution for clean, non-abrasive fluids. Whether your team requires standard sizes or customized specifications, our China factory provides full technical support to ensure you get the right material for your application.

    Key Characteristics of PTFE Packing

    01

    Universal Chemical Resistance

    pH 0–14, inert to acids, solvents, caustics and water.

    02

    Lowest Friction

    Coefficient of friction 0.05–0.20, the lowest of any solid material.

    03

    Self-Lubricating

    No external lubrication needed; reduces shaft wear.

    04

    FDA-Compliant Grades

    Available for food and pharma, meeting rigorous quality standards.

    05

    Non-Stick Surface

    Media does not adhere to the packing; easy to clean.

    Why Choose PTFE Packing?

    How It Works

    PTFE fibers: universal chemical resistance (pH 0–14), non-stick surface, lowest friction (0.05–0.20).

    Lubricants: reduce friction further, dissipate heat, prevent shaft scoring.

    Braided construction: interlocking braid provides flexibility and uniform shaft contact for reliable sealing.

    Rubber swells and fails in chemicals

    PTFE is chemically inert — no swelling, no degradation.

    Graphite oxidizes in acids

    PTFE handles acids with ease — pH 0–14.

    Metal packing corrodes

    PTFE is corrosion-proof — lasts where metal fails.

    High friction damages shafts

    PTFE has the lowest friction (0.05–0.20) — self-lubricating.

    Food / pharma contamination risk

    FDA-compliant grades available — pure, no extractables.

    Comparison & Selection Guide

    PTFE vs Aramid/PTFE vs Carbon/Graphite Packing

    Recommended for clean fluids

    PTFE Packing

    • Chemical resistance pH 0–14
    • Friction 0.05–0.20, lowest
    • FDA-compliant grades
    • Lowest initial cost ($)
    • Service life in clean service: years

    Aramid / PTFE

    • Chemical resistance pH 2–12
    • Friction higher than PTFE
    • Not FDA compliant
    • Cost $$
    • 5–10x longer in abrasives

    Carbon / Graphite

    • Chemical resistance ★★★★☆
    • Friction higher than PTFE
    • Not FDA compliant
    • Cost $$$
    • Best for high temperature, steam
    Feature PTFE Packing Aramid / PTFE Carbon / Graphite
    Chemical Resistance ★★★★★ pH 0–14 ★★★★☆ pH 2–12 ★★★★☆
    Abrasion Resistance ★☆☆☆☆ soft, wears fast ★★★★★ toughest ★★★☆☆
    Temperature -180 °C to +200 °C -100 °C to +280 °C Up to +650 °C
    Pressure Up to 200 bar Up to 200 bar Up to 250 bar
    Friction ★★★★★ lowest ★★★★☆ ★★★★☆
    FDA Compliant ✅ Yes ❌ No ❌ No
    Cost (Initial) $ $$ $$$
    Service Life in Clean Service Years Overkill — no benefit Overkill — no benefit
    Service Life in Abrasive Service Weeks 5–10x longer Moderate
    Best For Clean chemicals, food / pharma, acids, solvents Abrasives, slurries, dirty fluids High temperature, steam

    Quick Selection Guide

    If Your Service Is… Choose… Why
    Clean chemicals, acids, solvents, food / pharma PTFE packing Lowest cost, pH 0–14, FDA-compliant
    Abrasive media, slurries, sand, dirty fluids Aramid / PTFE 5–10x longer in abrasives
    High temperature above +260 °C, steam Carbon / Graphite Handles +650 °C
    Need FDA compliance PTFE packing Meets FDA 21 CFR 177.1550

    Primary Applications

    Industry Application
    Chemical Processing Pumps, valves, mixers — acids, solvents, caustics
    Pharmaceutical Sterile processing, API manufacturing — FDA compliance
    Food & Beverage Sanitary pumps, valves — FDA compliance
    Water & Wastewater Clean water, low-pressure steam
    Power Generation Cooling water, low-temperature steam

    Related materials: PTFE and specialty packings · PTFE gaskets · PTFE semi-finished products

    Taifno PTFE factory production area
    PTFE production area.
    Taifno PTFE molding equipment
    Molding equipment.
    Taifno PTFE batch control
    Material handling and batch control.
    Taifno finished stock
    Finished stock.

    Real-World Applications

    Case Study 1: Chemical Plant — 2x Longer Life

    Client: Chemical plant handling sulfuric acid.

    Challenge: Rubber packing on pump handling sulfuric acid was replaced every 3 months due to swelling and degradation. Each replacement meant 2 hours downtime. Annual cost: $1,200 in packing + $8,000 in downtime.

    Solution: Installed PTFE packing with PTFE yarn and lubricants. Universal chemical resistance to acid confirmed.

    Result: Packing lasted over 7 months — 2x longer. Annual packing cost reduced by 50%. Downtime reduced from 8 replacements/year to 4 replacements/year. Total annual savings: ~$4,000.

    Case Study 2: Food Processing Plant — FDA Compliance Achieved

    Client: Food processing plant handling fruit concentrates.

    Challenge: Needed FDA-compliant packing for sanitary pumps. Packing must not contaminate food products.

    Solution: Supplied FDA-compliant PTFE packing with pure PTFE yarn — no lubricant leaching risk. Full FDA documentation provided.

    Result: FDA compliance achieved. Packing performed reliably for 12 months. Zero contamination events. $15,000 in product loss prevented.

    Note: Actual case results vary by application conditions. Contact us for application-specific recommendations.

    Technical Specifications

    PTFE Packing Properties

    Temperature-180 °C to +200 °C
    Pressure — StaticUp to 200 bar
    Pressure — DynamicUp to 80 bar
    Speed — StaticUp to 20 m/s
    Speed — DynamicUp to 12 m/s
    pH Range0–14
    Friction Coefficient0.05 – 0.20
    MaterialPTFE yarn + lubricants
    ColorWhite
    FDA CompliantYes — on request

    Available Grades

    Grade Type Construction Best For
    Virgin PTFE Yarn 100% virgin PTFE fibers Universal chemical resistance, FDA compliance
    PTFE with Graphite Lubricant PTFE fibers with graphite lubricant Heat dissipation, reduced friction
    PTFE with Silicone Lubricant PTFE fibers with silicone lubricant Lower friction, smooth running
    Expanded PTFE (ePTFE) Micro-porous PTFE Higher compressibility, better conformability

    Quality Assurance

    ✓

    100% Virgin PTFE

    No regrind, no recycled material. Consistent quality, batch after batch.

    ✓

    Full Traceability

    Every batch traceable from raw material to finished packing.

    ✓

    FDA-Compliant Grades

    Meets FDA 21 CFR 177.1550 requirements.

    ✓

    Precision Braiding

    Consistent density, flexibility, and sealing performance.

    PTFE material testing
    Material testing.
    PTFE dimensional inspection
    Dimensional inspection.
    PTFE batch traceability
    Batch traceability records.
    PTFE final quality check
    Final quality check.

    FAQ

    What is Braided Virgin PTFE Packing and when should I use it?

    Braided packing made from PTFE fibers, soft, low-friction, and chemically inert. Seals pumps and valves against almost all chemicals, acids, solvents, alkalis, water, steam, and food / pharma (FDA grades available).

    When to use it: clean chemicals, food / pharma, clean water, acids, solvents, low-pressure steam.

    When NOT to use it: abrasive media (slurries, sand, ash) — PTFE is soft and wears out fast; use aramid/PTFE packing for dirty fluids. For high temperature above +260 °C, use carbon/graphite packing.

    Price check: PTFE costs less upfront than aramid/PTFE. If your media is clean, PTFE is the most cost-effective choice.

    PTFE and aramid/PTFE packing, which one saves you money?

    The real cost is not the packing, it is the downtime.

    PTFE packing costs less upfront and works perfectly on clean fluids. One PTFE packing can last 2–3 years on clean water or chemicals; annual cost is very low.

    Aramid/PTFE packing costs 2–3x more upfront. In abrasive service, it lasts 5–10x longer than PTFE. But if your media is clean, aramid/PTFE is overkill — you are paying more for no benefit.

    Quick rule: clean fluid → PTFE (lowest cost, works great). Dirty fluid with solids → Aramid/PTFE (costs more but lasts far longer). Send us your media and pump data, we recommend the right packing and show you the cost difference.

    What are the limits and the most common mistakes?

    Temperature: -180 °C to +200 °C. Pressure: up to 200 bar. Speed: up to 20 m/s (static), up to 12 m/s (dynamic). Chemical: pH 0–14 universal resistance, except molten alkali metals and elemental fluorine.

    Three common mistakes: (1) Using PTFE in abrasive service — it wears out fast; use aramid/PTFE instead. (2) Over-tightening — PTFE is soft; excessive compression causes cold flow and leakage; use a torque wrench. (3) Exceeding +260 °C — PTFE softens and extrudes; use carbon/graphite for high temperature.

    Not Sure If PTFE Packing Fits Your Pump or Valve?

    Send your media, temperature, pressure, shaft speed and pump/valve type. Taifno's engineers will confirm the packing grade — virgin, graphite-lubricated, silicone-lubricated or ePTFE — and recommend the right cross-section, usually within one working day.

    • FDA 21 CFR 177.1550 grades available
    • Virgin, graphite-lubricated, silicone-lubricated and ePTFE options
    • Factory-direct pricing and free samples
