Oil-Free PTFE Braided Packing
  • Oil-Free PTFE Braided PackingOil-Free PTFE Braided Packing

Oil-Free PTFE Braided Packing

Oil-Free PTFE Braided Packing contains no added oils, greases, or silicone; it poses zero risk of contamination, complies with FDA standards, is safe for oxygen service, and features high material purity with no leachables. It is suitable for applications in the food, pharmaceutical, and cleanroom sectors, as well as for oxygen service. Taifno offers free samples and factory-direct pricing; please feel free to contact us.
    Rating: 5.0
    (Rating Count: 1)

    Oil-Free PTFE Braided Packing for Food, Pharma, Oxygen and Cleanroom Service

    Oil-free PTFE braided packing is ideally suited for applications such as food processing, pharmaceuticals, oxygen transport, and cleanrooms, as it eliminates risks of contamination and explosion. It withstands temperatures ranging from -180°C to +200°C, pressures up to 200 bar (static) / 80 bar (dynamic), and linear speeds up to 20 m/s (static) / 12 m/s (dynamic); it is compatible with a pH range of 0–14 and offers universal chemical resistance.

    Temperature-180 to +200 °C
    Pressure200 bar static / 80 bar dynamic
    Speed20 m/s static / 12 m/s dynamic
    pH Range0–14

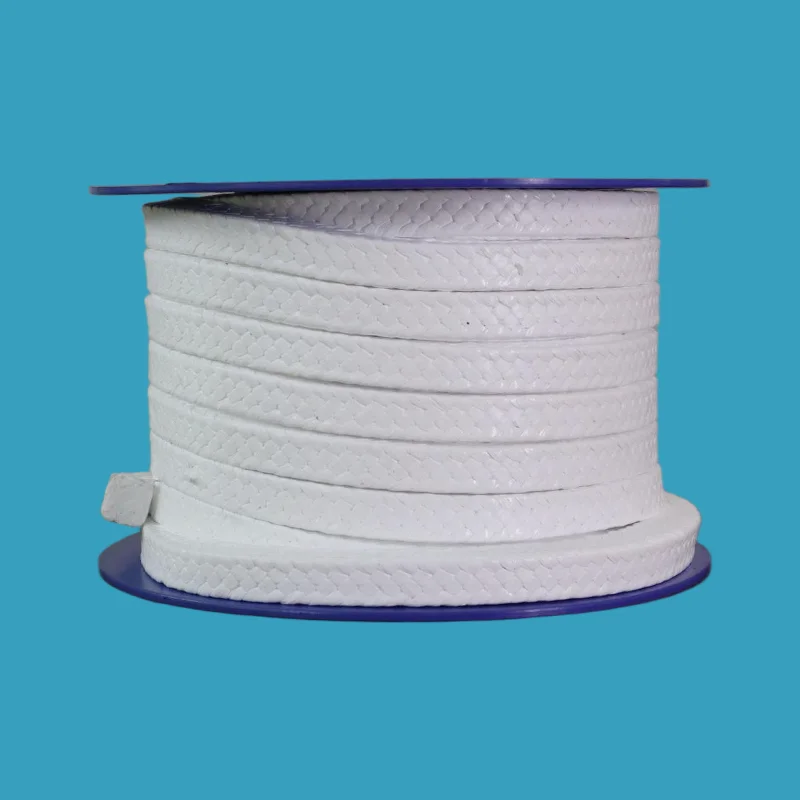

    Oil-Free PTFE Braided Packing
    Oil-free PTFE braided packing, white, 100% virgin PTFE without added lubricants.

    What Is Oil-Free PTFE Packing?

    Oil-free PTFE packing is braided from pure PTFE fibers with no added lubricants — no oil, no grease, no silicone, no graphite. PTFE itself provides the lowest coefficient of friction of any solid material (0.05-0.20), so no external lubrication is required.

    Why it matters: Standard PTFE packing is impregnated with lubricants to reduce friction. But in critical services, these lubricants can leach into food or pharmaceutical products (product loss, FDA violations), react with oxygen (fire or explosion risk), outgas in cleanroom or semiconductor applications (product contamination), or contaminate sensitive chemical processes (batch failure). Oil-Free PTFE Braided Packing eliminates all these risks.

    Why Choose Oil-Free PTFE Packing?

    Oil leaches into food/pharma

    No oil — zero contamination risk.

    Wrong choice: $10,000+ product loss + FDA fines
    Lubricants react with oxygen

    Oil-free design — oxygen safe.

    Wrong choice: explosion risk + safety incident
    Lubricants outgas in cleanrooms

    No lubricants — no outgassing.

    Wrong choice: contaminated batches, $100,000+ loss
    Silicone interferes with paints/coatings

    Silicone-free — no contamination.

    Wrong choice: production line shutdown
    Lubricants contaminate sensitive chemicals

    Pure PTFE — no extractables.

    Wrong choice: chemical process failure

    Comparison & Selection Guide

    Oil-Free vs Standard PTFE Packing

    Feature Oil-Free PTFE Standard PTFE Why It Matters
    Lubricants Added None — pure PTFE Oil, silicone, or graphite Oil-free = zero contamination risk
    Self-Lubricating Yes — PTFE natural Yes — PTFE natural PTFE itself is low-friction
    Contamination Risk Zero Present Critical for food, pharma, oxygen
    FDA Compliant Yes Depends on lubricant Oil-free meets FDA requirements
    Oxygen Service Safe Unsafe Oil + oxygen = fire/explosion risk
    Cost (Initial) $$ $ Price reflects purity — worth every cent

    Quick Selection Guide — By Industry

    Industry Choose... Why
    Food & Beverage Oil-Free PTFE FDA compliance — no contamination
    Pharmaceutical Oil-Free PTFE No extractables — USP compliance
    Oxygen Service Oil-Free PTFE No oil = no explosion risk
    Cleanroom / Semiconductor Oil-Free PTFE No outgassing — product purity
    Chemical — sensitive reactions Oil-Free PTFE No lubricant interference
    General industry, no purity concerns Standard PTFE Lower cost — lubricants not a concern

    Primary Applications

    Industry Application Why Oil-Free
    Food & Beverage Sanitary pumps, valves, mixers FDA compliance, no contamination
    Pharmaceutical Sterile processing, API manufacturing No extractables, USP compliance
    Oxygen Service Oxygen valves, pumps, piping Oil + oxygen = fire risk — oil-free is safe
    Semiconductor High-purity gas distribution, cleanroom No outgassing, high purity
    Aerospace Fuel systems, hydraulic systems No contamination, reliability
    Chemical Processing Sensitive reactions requiring purity No lubricant interference

    Buying Oil-Free PTFE Packing? Here Is What Engineers Compare First

    Real-World Applications

    Case Study 1: Food Processing Plant — FDA Compliance Achieved

    Client: Large food processing company handling fruit concentrates (mid-size US food manufacturer).

    Challenge: Standard lubricated PTFE packing risked lubricant migration into food products — FDA violation risk and potential product loss.

    Solution: Supplied Oil-Free PTFE Braided Packing, no added lubricants. FDA-compliant material. Full documentation provided.

    Result: FDA compliance achieved. Zero contamination events. Packing performed reliably for over 12 months. $50,000/year in potential product loss avoided.

    Case Study 2: Oxygen Plant — Safety Requirement Met

    Client: Oxygen generation facility.

    Challenge: Standard PTFE packing contained oil — oil + oxygen under pressure = explosion risk. Any oil-contaminated packing was unacceptable.

    Solution: Installed oil-free PTFE packing — no oil, no grease. Oxygen service approved. Certification provided.

    Result: Safe operation achieved. No incidents. Inspection passed. Zero safety violations.

    Note: Actual case results vary by application conditions. Contact us for application-specific recommendations.

    Taifno PTFE factory production area
    PTFE production area.
    Taifno PTFE molding equipment
    Molding equipment.
    Taifno PTFE batch control
    Material handling and batch control.
    Taifno finished stock
    Finished stock.

    Technical Specifications

    Oil-Free PTFE Packing Properties

    Temperature Range-180 °C to +200 °C
    Pressure — StaticUp to 200 bar
    Pressure — DynamicUp to 80 bar
    Speed — StaticUp to 20 m/s
    Speed — DynamicUp to 12 m/s
    pH Range0–14
    Friction Coefficient0.05–0.20 (self-lubricating)
    Material100% Virgin PTFE (no added lubricants)
    ColorWhite
    FDA CompliantYes — 21 CFR 177.1550
    Oxygen ServiceSafe — no oil, no grease

    Available Grades

    Grade Type Construction Best For
    Virgin PTFE (Oil-Free) 100% pure PTFE yarn, no lubricants FDA compliance, oxygen service, cleanroom
    PTFE with Graphite (Oil-Free) PTFE fibers with graphite lubricant only (oil-free) Heat dissipation without contamination
    Expanded PTFE (ePTFE) Micro-porous PTFE, no lubricants Higher conformability, less friction

    Taifno Quality Assurance

    100% Virgin PTFE

    No regrind, no recycled material. Consistent quality, batch after batch.

    No Added Lubricants

    Verified oil-free and silicone-free. Zero contamination risk.

    Full Traceability

    Every batch traceable. Material certificates on request.

    FDA-Compliant

    Meets FDA 21 CFR 177.1550 for food and pharmaceutical applications.

    Oxygen Service Approved

    Safe for oxygen applications — no oil/grease to react with oxygen.

    Precision Braiding

    Consistent density, flexibility, and sealing performance.

    PTFE material testing
    Material testing.
    PTFE dimensional inspection
    Dimensional inspection.
    PTFE batch traceability
    Batch traceability records.
    PTFE final quality check
    Final quality check.

    FAQ

    What is Oil-Free PTFE Braided Packing and when should I use it?

    PTFE packing with no added oil, grease, or silicone lubricants. Pure PTFE is self-lubricating, no external lubricants are needed. Use it when contamination is a risk.

    When to use it: Food processing, pharmaceuticals, oxygen service, cleanrooms, semiconductor manufacturing, sensitive chemical processes.

    When NOT to use it: High-speed dynamic service (above 12 m/s), lubricated PTFE handles higher speeds better. Abrasive media, use aramid/PTFE. High temperature above +200°C, use carbon fiber.

    The cost of choosing wrong: Standard PTFE may cost less upfront, but in food/pharma, one product contamination event can cost $10,000+. In oxygen service, the cost is far higher.

    Oil-free vs. standard PTFE packing, which one saves you money?

    The real cost is not the packing, it is the risk. Standard PTFE costs less upfront, but contains oil, silicone, or graphite lubricants.

    The true cost comparison: Oil-free PTFE costs more upfront, but eliminates contamination risk, product loss, and safety incidents.

    Quick rule:

    Food, pharma, oxygen, cleanroom → Oil-free PTFE (one avoided event pays for the packing many times over).

    General industry, no purity requirements → Standard PTFE (lower cost).

    What are the limits and the most common mistakes?

    Temperature: -180°C to +200°C. Pressure: up to 200 bar (static), up to 80 bar (dynamic). Speed: up to 20 m/s (static), up to 12 m/s (dynamic). Chemical: pH 0-14, universal resistance.

    Three common mistakes:

    (1) Using oil-free at high speed — above 12 m/s, friction heat builds up. Use lubricated PTFE or carbon fiber.

    (2) Using oil-free in abrasive service — PTFE is soft; wear out fast. Use aramid/PTFE.

    (3) Over-tightening — PTFE is soft; excessive compression causes cold flow and leakage. Use a torque wrench.

    Tell Us Your Media, Get a Factory Quotation

    Send your media, temperature, pressure and shaft speed. Taifno will recommend the right oil-free PTFE grade and provide a factory-direct price. We support customized sizes and OEM orders, offer free samples for evaluation, and provide discounts for bulk orders to ensure an affordable total cost.
