Graphite-Filled PTFE Sheet
  • Graphite-Filled PTFE SheetGraphite-Filled PTFE Sheet
  • Graphite-Filled PTFE SheetGraphite-Filled PTFE Sheet

Graphite-Filled PTFE Sheet

Graphite-filled PTFE sheet is one of the products offered by Taifno. As a manufacturer with 20 years of industry experience, we provide R&D and customization capabilities. Formulated with 15%–30% graphite filler, this product combines the excellent chemical resistance of PTFE with enhanced thermal conductivity and a lower coefficient of friction, making it suitable for gaskets, seals, bearings, and sliding components.

    Graphite-Filled PTFE Sheet

    Low-friction, thermally conductive PTFE sheet for bearings, dynamic seals and heat-dissipating gaskets. FDA-compliant grades available.

    Temperature-196 °C to +200 °C
    PressureUp to 75 bar
    Tensile≥11 N/mm²
    Recovery≥35%

    Graphite Reinforcement for Low Friction and Heat Dissipation

    As a professional manufacturer and supplier of graphite-filled PTFE sheets, Taifno offers FDA-compliant grades suitable for the food and pharmaceutical industries. The material is non-combustible, resistant to bacterial growth, and features lower friction, superior thermal conductivity, and reduced cold flow.

    Key specifications: operating temperature range of -180 °C to +200 °C, pressure resistance up to 75 bar, tensile strength ≥11 N/mm², and recovery rate ≥35%.

    Graphite Filled PTFE Sheet

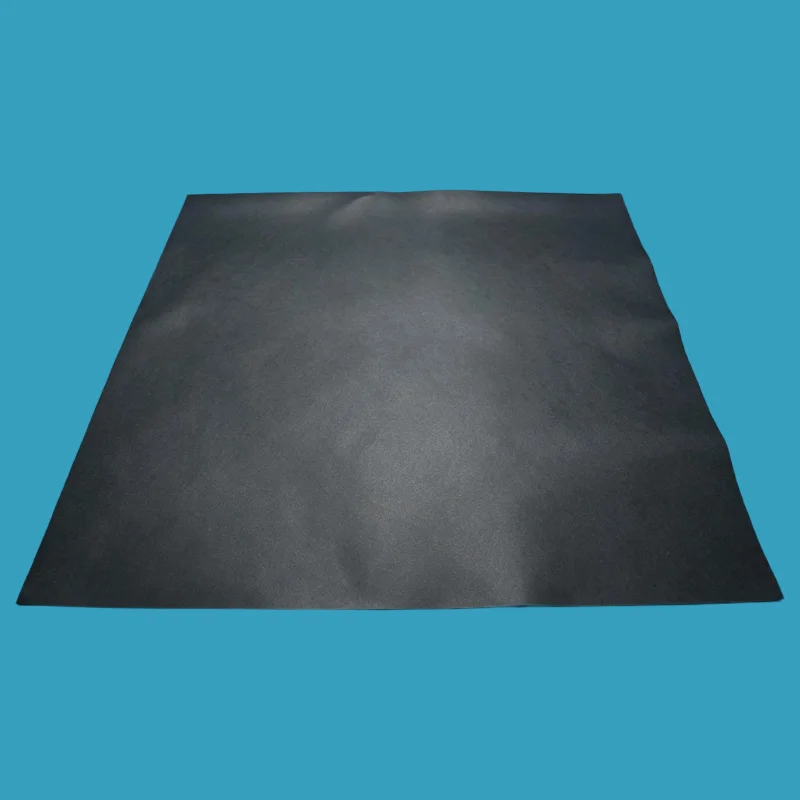

    Graphite-filled PTFE sheet.
    Graphite Filled PTFE Sheet

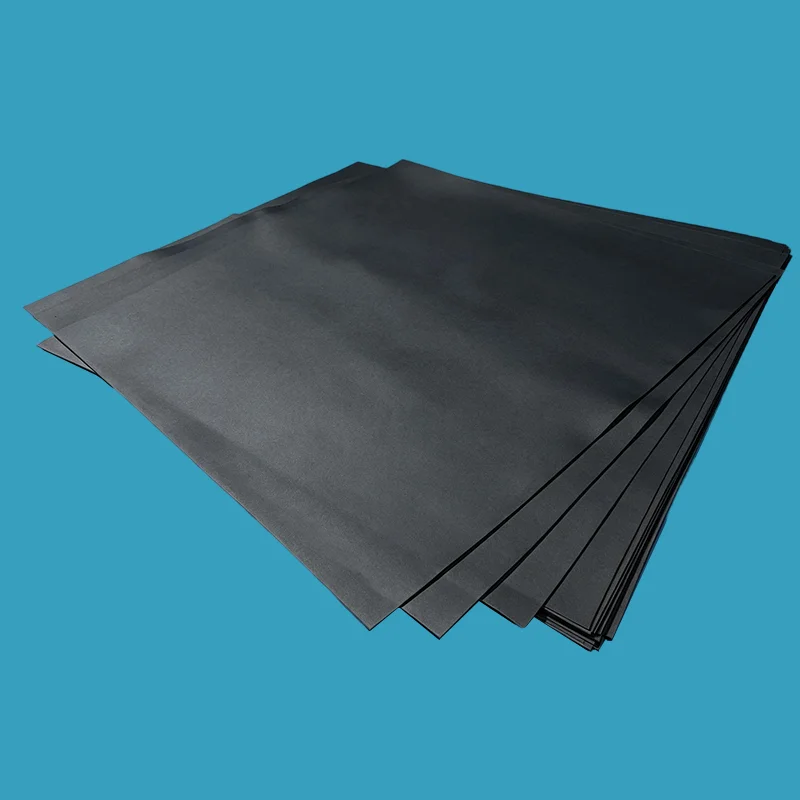

    Uniform graphite dispersion.

    What Is a Graphite-Filled PTFE Sheet?

    A graphite-filled PTFE sheet is a high-performance gasket material made from virgin PTFE reinforced with graphite filler (typically 15-30% graphite content). The graphite particles provide structural reinforcement that significantly improves the material's mechanical and thermal properties while maintaining PTFE's broad chemical compatibility (pH 0-14).

    Key Benefits of Graphite Reinforcement

    Lower Friction

    Graphite lowers the friction coefficient, improving sliding performance in bearings and seals.

    Better Thermal Conductivity

    Graphite enhances heat dissipation, reducing hot spots and shaft wear in service.

    Reduced Cold Flow

    Graphite filler minimizes creep relaxation (≤35% vs higher for virgin PTFE).

    Bolt Torque Retention

    Maintains seal over time, fewer re-torquing requirements.

    Good Recovery

    Recovery ≥35% maintains seal integrity under cycling.

    FDA Compliant

    Meets FDA specifications for food and pharmaceutical applications (select grades).

    Fire Safe

    Will not support flame; suitable for fire-sensitive areas.

    Bacteria Resistant

    Will not support bacterial growth; suitable for clean processes.

    Why Choose Graphite-Filled PTFE?

    Compared with modified PTFE sheets, graphite filler solves five common sealing problems in one material:

    Problem 1 PTFE creeps and leaks under load

    Graphite filler reduces cold flow (≤35% creep relaxation) — maintains bolt torque longer.

    Wrong choice: frequent re-torquing, gasket replacement every 6-12 months.
    Problem 2 Friction builds up in bearings

    Graphite lowers friction coefficient — smooth sliding, less wear.

    Wrong choice: shaft wear, equipment damage, premature failure.
    Problem 3 Heat damages gaskets and shafts

    Graphite improves thermal conductivity — dissipates heat, runs cooler.

    Wrong choice: hot spots, shaft scoring, gasket degradation.
    Problem 4 PTFE lacks mechanical strength

    Graphite improves compressive strength — holds shape under load.

    Wrong choice: gasket extrusion, deformation under pressure.
    Problem 5 Food / pharma contamination risk

    FDA-compliant grades available — pure material, no extractables.

    Wrong choice: product contamination, FDA fines, batch loss.

    Request a Graphite-Filled PTFE Sample

    Send your media, temperature, pressure and sheet size. Taifno will confirm the graphite content (15% or 30%), thickness and FDA grade, and ship a sample for trial.

    Request a Free Sample

    Comparison & Selection Guide

    Graphite-Filled PTFE vs Virgin PTFE vs Carbon Fiber PTFE vs Glass Fiber PTFE

    Feature Graphite-Filled PTFE Virgin PTFE Carbon Fiber PTFE Glass Fiber PTFE
    Color Black / Dark gray White Black Off-white / Gray
    Friction Coefficient ★★★★★ lowest ★★★★☆ ★★★★☆ ★★★☆☆
    Thermal Conductivity ★★★★★ excellent ★★☆☆☆ ★★★★★ excellent ★★★☆☆
    Creep Resistance ★★★★☆ ≤35% ★★☆☆☆ ★★★★★ ★★★★☆
    Wear Resistance ★★★★☆ ★★☆☆☆ ★★★★★ best ★★★★★ best
    Mechanical Strength ★★★★☆ ★★☆☆☆ ★★★★★ ★★★★★
    Chemical Resistance ★★★★☆ not for oxidizers ★★★★★ ★★★★☆ not for oxidizers ★★★★☆ not for HF/alkali
    FDA Compliant ✅ Yes ✅ Yes ❌ No ✅ Yes
    Best For Low friction, bearings, heat dissipation, dynamic seals General chemical High speed, high load, heat dissipation Abrasive media, high pressure

    Quick Selection Guide

    If Your Service Is… Choose… Why
    Bearings, bushings, sliding applications Graphite-Filled PTFE Lowest friction + thermal conductivity
    High-speed dynamic sealing Graphite-Filled PTFE Heat dissipation + low friction
    High temperature, high load, high speed Carbon Fiber PTFE Best thermal conductivity + mechanical strength
    Abrasive media, high pressure, high wear Glass Fiber PTFE Best wear resistance + mechanical strength
    Strong oxidizers (nitric acid, chlorine) Virgin PTFE Graphite / carbon oxidize — virgin PTFE required
    Clean chemicals, general sealing Virgin PTFE Lowest cost, universal chemical resistance

    Primary Applications

    Industry Application Why Graphite
    Chemical Processing Flanges, pumps, valves — acids, solvents, chemicals Chemical resistance + reduced creep + low friction
    Power Generation Steam systems, high temperature flanges, turbine seals Thermal conductivity, heat dissipation
    Pharmaceutical Sterile processing equipment — FDA compliance FDA compliant, non-contaminating
    Food & Beverage Sanitary connections — FDA compliance FDA compliant, bacteria resistant
    Bearings & Bushings Mechanical parts, sliding applications, thrust washers Lowest friction, thermal conductivity, low wear
    Pulp & Paper Digesters, pumps — moderate chemicals Chemical resistance + creep resistance
    Oil & Gas Refinery flanges, pipelines — hydrocarbons Chemical compatibility + thermal stability

    Related materials: modified PTFE sheets · PTFE gaskets · PTFE seals and machined components

    Taifno PTFE factory production area
    PTFE production area.
    Taifno PTFE molding equipment
    Molding equipment.
    Taifno PTFE batch control
    Material handling and batch control.
    Taifno finished stock
    Finished stock.

    Technical Specifications

    Product Properties

    Temperature-196 °C to +200 °C
    Max PressureUp to 75 bar
    Density2.1 – 2.3 g/cm³
    Tensile Strength≥ 11 N/mm²
    Compressibility7 – 19% (ASTM F36)
    Recovery≥ 35% (ASTM F36)
    Creep Relaxation≤ 35% (ASTM F38)
    ColorBlack / Dark gray
    MaterialPTFE + graphite filler (15–30%)
    FDA CompliantYes (select grades)
    Flame ResistanceWill not support flame
    Bacterial GrowthWill not support

    Available Grades

    Grade Graphite Content Best For
    Graphite 15% 15% graphite Moderate improvement in properties while maintaining flexibility
    Graphite 30% 30% graphite Maximum thermal conductivity, compressive strength, and creep resistance
    Graphite + Glass Fiber 20% glass + 5% graphite Balanced properties — strength + low friction
    FDA Grade Graphite filled Food and pharmaceutical applications

    Available Sizes

    Size (mm) Thickness Range (mm) Notes
    1000 × 1000 4 — 50 Molded sheet
    1220 × 1220 4 — 50 Molded sheet
    1500 × 1500 4 — 50 Molded sheet
    2000 × 2000 4 — 50 Molded sheet

    Quality Assurance

    Material

    100% Virgin PTFE Resin & Graphite Reinforcement

    Consistent quality, batch after batch. Graphite is uniformly dispersed for consistent performance.

    Compliance

    FDA-Compliant Grades Available

    Suitable for food and pharmaceutical applications. Full traceability, material certificates on request.

    Safety

    Fire Safe & Bacteria Resistant

    Will not support flame; will not support bacterial growth. Suitable for clean processes.

    Lead Time

    Stock & Custom

    Standard sizes in stock (24–48 hours); custom sizes 7–10 days.

    PTFE material testing
    Material testing.
    PTFE dimensional inspection
    Dimensional inspection.
    PTFE batch traceability
    Batch traceability records.
    PTFE final quality check
    Final quality check.

    FAQ

    What is a graphite-filled PTFE sheet, and where should I use it?

    A graphite-filled PTFE sheet (also known as a graphite-modified PTFE sheet or black PTFE gasket) is PTFE reinforced with graphite filler (typically 15-30%). It offers improved thermal conductivity, lower friction, and reduced creep (≤35% creep relaxation) compared to virgin PTFE.

    Use it in applications requiring good heat dissipation, low friction, and chemical resistance: bearings, bushings, sliding applications, chemical processing flanges, and power generation equipment. Available in FDA-compliant grades for food and pharmaceutical applications.

    When NOT to use it: Strong oxidizers at high temperature (nitric acid, chlorine, etc.) — graphite can oxidize. Use virgin PTFE for these services.

    Graphite-filled PTFE vs. carbon fiber-filled PTFE, which one should I choose?

    Both are black, both improve thermal conductivity, but they serve different applications. Graphite-filled PTFE offers the lowest coefficient of friction and best sliding performance, ideal for bearings, bushings, and dynamic seals where friction reduction is critical.

    Carbon fiber-filled PTFE offers higher mechanical strength and better wear resistance, ideal for high-speed, high-load, high-temperature applications where both strength and heat dissipation are required.

    Quick rule: Need low friction + good heat dissipation → Graphite. Need high strength + high speed + high load → Carbon fiber. For FDA applications, graphite-filled is available; carbon fiber is not FDA compliant.

    What are the limits of graphite-filled PTFE sheet and what are the most common mistakes?

    Temperature: -180 °C to +200 °C continuous service.

    Pressure: up to 75 bar — depends on thickness and design.

    Chemical: pH 0-14 — NOT compatible with strong oxidizers at high temperature (nitric acid, chlorine, etc.) — graphite oxidizes.

    Three common mistakes: (1) Using in strong oxidizers — graphite oxidizes at high temperature in nitric acid, chlorine, and strong oxidizing environments; use virgin PTFE or glass-filled PTFE instead. (2) Expecting the same chemical resistance as virgin PTFE — while PTFE offers pH 0-14 resistance, the graphite filler has chemical limits; verify compatibility before use. (3) Over-tightening — graphite-filled PTFE requires controlled torque; excessive compression can damage the gasket.

    Need help selecting the right grade? Contact us with your temperature, pressure, and media, we recommend the right PTFE grade within 24 hours.

    Not Sure If Graphite-Filled PTFE Fits Your Service?

    Send your media, temperature, pressure and flange or seal size. Taifno's engineers will confirm the graphite content, thickness and whether a carbon fiber or glass fiber grade is a better fit — usually within one working day.

    • Graphite content 15% or 30%
    • Sheet sizes up to 2000 × 2000 mm
    • FDA 21 CFR 177.1550 grades available
    Send Inquiry
