Silica-Filled PTFE Sheet
  • Silica-Filled PTFE SheetSilica-Filled PTFE Sheet
  • Silica-Filled PTFE SheetSilica-Filled PTFE Sheet
  • Silica-Filled PTFE SheetSilica-Filled PTFE Sheet

Silica-Filled PTFE Sheet

Silica-filled PTFE sheets, with added silica filler, maintain the broad chemical compatibility of PTFE while improving creep resistance, reducing cold flow tendency, and enhancing bolt preload retention. As a reliable manufacturer, Taifno's products are BAM certified for oxygen applications, EN 12308 certified for cryogenic applications, and also available in FDA-compliant grades for the food and pharmaceutical industries.
    FDA 21 CFR 177.1550
    USDA Compliant
    BAM Oxygen Service
    EN 12308 Cryogenic
    EU No. 10/2011
    Taifno Silica-Filled PTFE Sheet

    Silica-Filled PTFE Sheet

    Silica-filled PTFE sheet is light tan or light brown in color. It maintains a tight, reliable seal and exhibits excellent chemical resistance during long-term exposure to strong acids, solvents, and highly corrosive chemical media. Unlike pure PTFE gaskets, it resists creep under load and offers enhanced bolt preload retention.

    01

    -180 °C to +200 °C

    Operating temperature range, with EN 12308 cryogenic certification.

    02

    Up to 83 bar (1200 PSI)

    Pressure resistance, depending on thickness and design.

    03

    ≥20 MPa tensile

    Density 2.1–2.3 g/cm³, tested to ASTM D792 and ASTM F152.

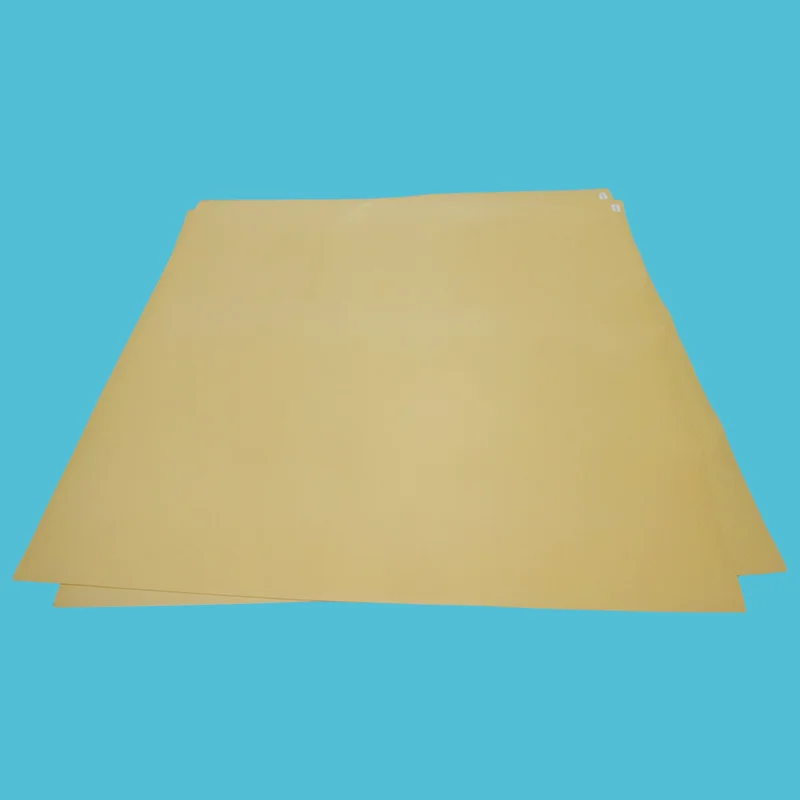

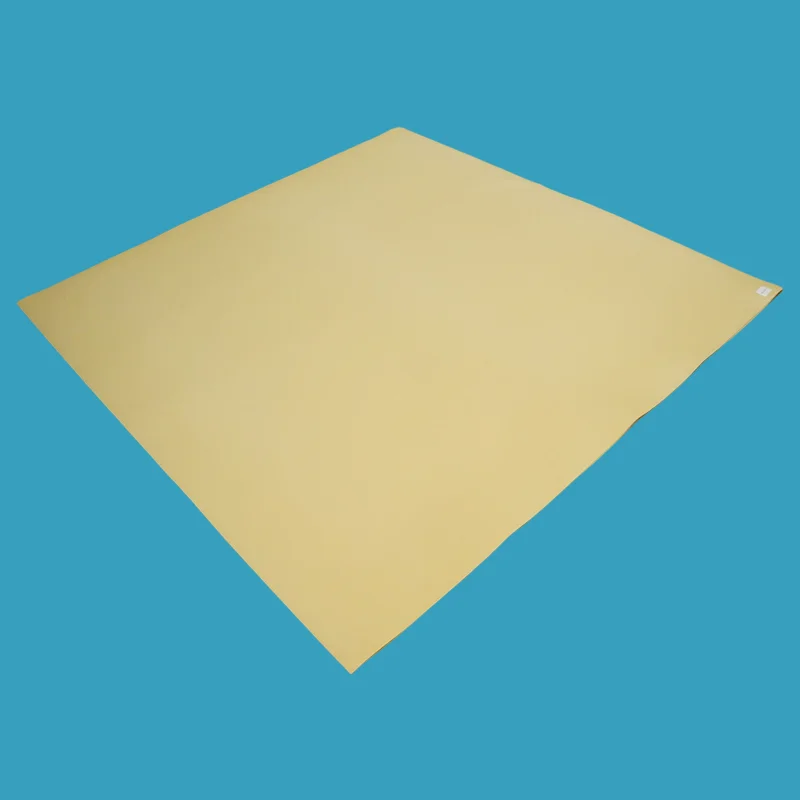

    Silica-filled PTFE sheet from Taifno
    Silica-filled PTFE sheet, fawn / light brown.

    What Is Silica-Filled PTFE Sheet?

    Silica-filled PTFE sheet is a high-performance gasket material made from virgin PTFE reinforced with silicon dioxide (SiO₂) filler. The silica particles provide structural reinforcement that significantly improves the material's sealing performance while maintaining PTFE's broad chemical compatibility (pH 0–14).

    Designed for strong acids, solvents, hydrocarbons and other aggressive media. This makes it the preferred choice for chemical processing, pharmaceutical, food and beverage, and petrochemical applications.

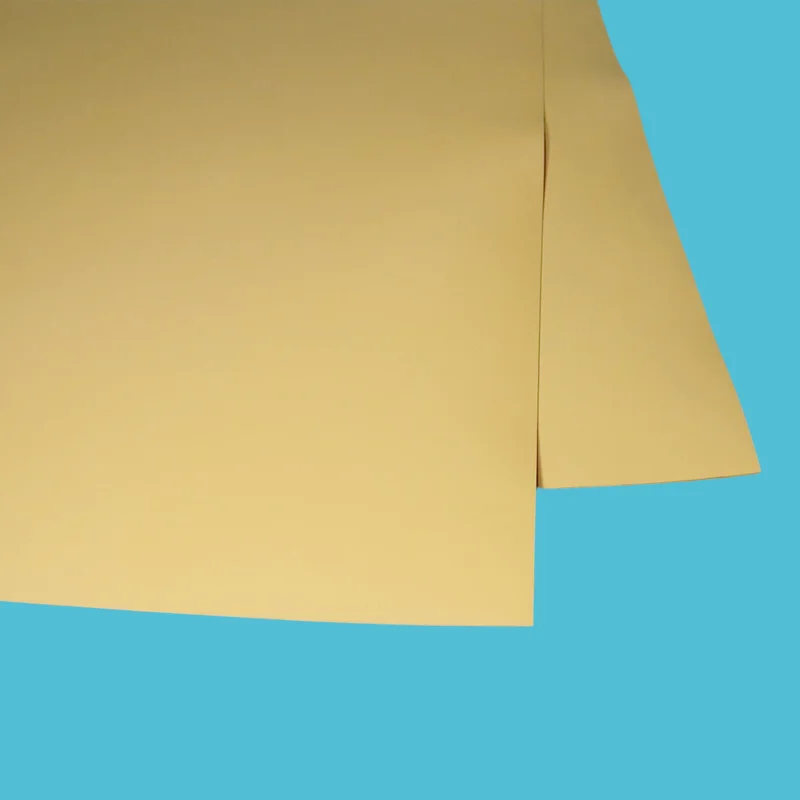

    Silica-filled PTFE sheet sealing surface
    Improved creep resistance and bolt torque retention.

    Key benefits of silica reinforcement

    Reduced creep relaxation Maintains bolt torque longer, fewer re-torquing requirements.
    Improved sealing performance Tight seal that reduces product loss and emissions.
    Excellent chemical resistance Compatible with strong acids (except HF), solvents, hydrocarbons, chlorine, steam, and cryogenic services.
    FDA compliant Meets FDA 21 CFR 177.1550 and USDA specifications for food and pharmaceutical applications.
    Bacterial growth resistant Will not support bacterial growth.
    Flame resistant Will not support flame.
    BAM approved Available in oxygen service grade (Style 3502) per BAM standards.
    EN 12308 certified Cryogenic service certified.

    Why Choose Silica-Filled PTFE?

    Problem How Silica-Filled PTFE Solves It The Cost of Choosing Wrong
    Virgin PTFE creeps and loses torque Silica reinforces the structure — maintains bolt torque longer, reduces re-torquing Frequent re-torquing, gasket replacement every 6–12 months
    Strong acids attack standard gaskets PTFE provides pH 0–14 resistance — compatible with most aggressive chemicals Chemical degradation, seal failure, product loss
    Chlorine service degrades rubber Silica-filled PTFE resists chlorine — reliable sealing in aggressive media Premature failure, safety incidents
    Cryogenic service makes materials brittle Silica-filled PTFE remains flexible at -180 °C — EN 12308 certified Brittle failure, leakage in cryogenic systems
    Food/pharma contamination risk FDA and USDA compliant — pure material, no extractables Product contamination, FDA fines, batch loss

    Comparison & Selection Guide

    Silica-Filled PTFE vs Virgin PTFE vs Glass Fiber PTFE vs ePTFE

    Feature Silica-Filled PTFE Virgin PTFE Glass Fiber PTFE ePTFE (Expanded)
    Creep Resistance ★★★★★ excellent ★★☆☆☆ poor ★★★★☆ ★★★★☆
    Bolt Torque Retention ★★★★★ excellent ★★☆☆☆ poor ★★★★☆ ★★★★☆
    Chemical Compatibility ★★★★★ strong acids (except HF) ★★★★★ universal ★★★★☆ not HF/alkali ★★★★★
    Conformability ★★★☆☆ ★★☆☆☆ ★★☆☆☆ ★★★★★
    FDA Compliant ✅ Yes ✅ Yes ✅ Yes ✅ Yes
    BAM Oxygen Service ✅ Yes (special grade) ❌ No ❌ No ⚠️ Limited
    Cryogenic Service ✅ Yes (EN 12308) ✅ Yes ✅ Yes ✅ Yes
    Best For Strong acids, chlorine, cryogenic General chemical Abrasive media Damaged flanges, low torque

    Quick Selection Guide

    If Your Service Is… Choose… Why
    Strong acids, solvents, hydrocarbons, chlorine Silica-Filled PTFE Best chemical compatibility + creep resistance
    Cryogenic / LNG service Silica-Filled PTFE (EN 12308) Certified cryogenic performance
    Oxygen service Silica-Filled PTFE (BAM grade) BAM approved oxygen service
    Food/pharmaceutical processing Silica-Filled PTFE FDA compliant, will not support bacterial growth
    Badly pitted, warped flanges ePTFE (Expanded PTFE) Better conformability to irregular surfaces
    Abrasive media, high wear Glass Fiber PTFE Higher wear resistance
    Hydrofluoric acid service Virgin PTFE Silica reacts with HF — virgin PTFE required

    For the unfilled baseline, review the virgin PTFE flat gasket page; for abrasive media, see glass-fiber-filled PTFE gasket, and the full PTFE skived and molded sheet range lists related sheet forms. The full PTFE gaskets catalogue lists all cut gasket options.

    Primary Applications

    Industry Application Why Silica-Filled
    Chemical Processing Flanges, pumps, valves — strong acids, solvents, hydrocarbons, chlorine pH 0–14 resistance + creep resistance
    Pharmaceutical Sterile processing equipment — FDA compliance FDA 21 CFR 177.1550, non-contaminating
    Food & Beverage Sanitary connections — FDA/USDA compliance FDA compliant, bacteria resistant
    Oil & Gas Refinery flanges, pipelines — hydrocarbons, aggressive chemicals Chemical compatibility + thermal stability
    Power Generation Steam systems, cooling water — high temperature service Wide temperature range, creep resistance
    LNG & Cryogenic Cryogenic equipment — LNG processing EN 12308 certified, -180 °C capability
    Taifno PTFE factory production area
    PTFE production area.
    Taifno PTFE molding equipment
    Molding equipment.
    Taifno PTFE batch control
    Material handling and batch control.
    Taifno finished sheet stock
    Finished sheet stock.

    Technical Specifications

    Silica-Filled PTFE Sheet Properties

    Temperature Range-180 °C to +200 °CContinuous service
    Max PressureUp to 83 bar (1200 PSI)Depends on thickness and design
    Density2.1 – 2.3 g/cm³ASTM D792
    Tensile Strength≥20 MPaASTM F152
    ColorFawn / light brown—
    MaterialPTFE + SiO₂ fillerSilica reinforced
    FDA CompliantYesFDA 21 CFR 177.1550, USDA
    BAM ApprovedYes (oxygen grade)Style 3502 oxygen service
    EN 12308 CertifiedYesCryogenic service
    EU No. 10/2011YesFood contact
    Max PxT (1/16")350,000 °F·PSIG12,000 bar·°C
    Max PxT (1/8")250,000 °F·PSIG8,600 bar·°C

    Available Sizes

    Size (mm) Thickness (mm) Notes
    1500 × 1500 0.5 – 10 Standard sheet sizes
    1500 × 4500 Various Large sheet available
    Custom sizes Available on request Cut gaskets available

    Taifno Quality Assurance

    100% Virgin PTFE Resin Consistent quality, batch after batch.
    Silica Reinforcement Uniform dispersion for consistent performance.
    FDA-Compliant Meets FDA 21 CFR 177.1550 and USDA specifications.
    BAM Approved Oxygen service grade available (Style 3502).
    EN 12308 Certified Cryogenic service certified.
    EU No. 10/2011 Food contact compliant.
    Full Traceability Material certificates on request.
    Lead Time Standard sizes in stock (24–48 hours); custom sizes 7–10 days.
    PTFE material testing
    Material testing.
    PTFE dimensional inspection
    Dimensional inspection.
    PTFE batch traceability
    Batch traceability records.
    PTFE final quality check
    Final quality check.

    FAQ

    What is silica-filled PTFE sheet, and where should I use it?

    Silica-filled PTFE sheet (also known as SiO₂ PTFE sheet or silica PTFE gasket) is virgin PTFE reinforced with silicon dioxide filler. It offers excellent creep resistance, bolt torque retention, and chemical compatibility, making it ideal for strong acids (except hydrofluoric acid), solvents, hydrocarbons, chlorine, steam, and cryogenic services. Available in FDA-compliant grades (FDA 21 CFR 177.1550) for food and pharmaceutical applications. BAM approved for oxygen service and EN 12308 certified for cryogenic service.

    When NOT to use it: hydrofluoric acid (HF) service — silica reacts with HF; use virgin PTFE instead.

    How does silica-filled PTFE compare to virgin PTFE?

    Silica-filled PTFE offers significantly improved creep resistance and bolt torque retention over virgin PTFE. Virgin PTFE is softer and deforms under sustained load; silica-filled PTFE holds its shape longer, reducing product loss and emissions. Both offer broad chemical resistance (pH 0–14), but silica-filled PTFE is recommended for strong acids, solvents, hydrocarbons, and chlorine service while maintaining FDA compliance (FDA 21 CFR 177.1550). The unique manufacturing process minimizes cold flow problems typical of conventional PTFE sheets. For cryogenic applications, silica-filled PTFE is EN 12308 certified for service down to -180 °C.

    When to choose virgin PTFE: hydrofluoric acid service, applications requiring maximum chemical purity, or lower cost requirements where creep is not a concern.

    What are the limits and what are the most common mistakes?

    Temperature: -180 °C to +200 °C continuous service. Pressure: up to 83 bar (1200 PSI), depends on thickness and design. Chemical: pH 0–14, NOT compatible with hydrofluoric acid (HF).

    Three common mistakes: (1) using in HF service — silica reacts with HF, use virgin PTFE instead; (2) over-tightening — silica-filled PTFE requires controlled torque, excessive compression can damage the gasket, follow recommended installation torque specifications; (3) wrong thickness selection — standard sizing available in 1/16" (1.5 mm) and 1/8" (3.0 mm), follow design specifications; for badly pitted flanges, consider profiled sheet for improved conformability.

    Need help selecting the right grade? Contact us with your temperature, pressure, and media — we recommend the right PTFE grade.

    Request a Free Sample of Silica-Filled PTFE Sheet

    Send your thickness (1/16" / 1/8" / custom), sheet size, media and temperature. Taifno will confirm the grade (standard, BAM oxygen or EN 12308 cryogenic), FDA compliance and lead time — free sample for evaluation.
