Custom Machined PTFE Parts

With over 20 years of industry experience, Taifno possesses comprehensive capabilities in R&D, customization, and production, offering a wide range of custom machined PTFE parts. We utilize precision machining or compression molding to meet your exact specifications, accommodating any shape, size, or grade, and handle everything from prototype development to mass production.
    Rating: 5.0
    (Rating Count: 1)

    Custom Machined PTFE Parts for Non-Standard Flanges, Valve Seats and Sealing Components

    Taifno is a specialized manufacturer offering custom machined PTFE parts. Our expert team produces components based on your CAD drawings, PDF files, or even hand-drawn sketches. We work with a wide range of materials, including virgin PTFE and various filled grades (such as glass fiber, carbon fiber, molybdenum disulfide, bronze, PEEK, etc.), each engineered to meet specific performance requirements. Request a quote today; we will respond within 24 hours to discuss solutions and pricing and provide free samples.

    Tolerance±0.02 mm (precision)
    Size RangeUp to 3300 mm molded
    Temperature-180 °C to +200 °C
    Lead Time5-7 days prototype
    Custom Machined PTFE Parts

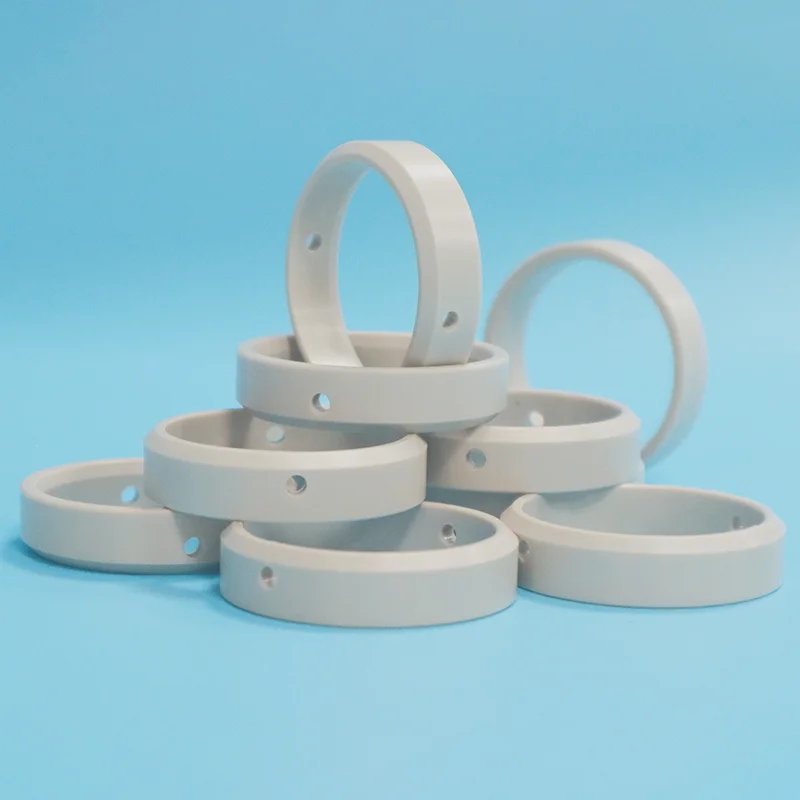

    Custom machined PTFE part, produced to drawing.
    Custom Machined PTFE Parts
    Complex PTFE geometry with tight tolerance.

    What Are Custom Machined PTFE Parts?

    PTFE custom parts are precision-machined or molded components manufactured from PTFE resin to your exact specifications, not an off-the-shelf standard. You need them when standard sizes do not fit, your flange is non-standard, or your application demands a specific shape, tolerance, or material grade.

    Examples: Custom gaskets, valve seats, piston rings, bearing pads, bellows, insulators, any shape you can draw, we can make from PTFE.

    Key Material Characteristics of PTFE

    Chemical Inertness

    Resists almost all chemicals, acids, alkalis, solvents, hydrocarbons.

    Temperature Range

    Continuous service from -180°C to +200°C (short-term up to +300°C).

    Lowest Friction

    Coefficient as low as 0.04, the lowest of any solid material.

    Non-Stick Surface

    Prevents media adhesion and buildup, easy cleaning.

    Electrical Insulation

    Excellent dielectric properties.

    FDA Compliance

    Available in food-grade and biocompatible grades.

    Manufacturing Processes

    CNC Machining

    Best for: Complex geometries, tight tolerances, prototypes, small-to-medium batches.

    Key features: Achieves ±0.02 mm, 5-axis capability, complex contours.

    Compression Molding

    Best for: Large diameter parts, high-volume production, simple shapes.

    Key features: Parts up to 3300 mm diameter, high density, no voids.

    Why Choose Custom PTFE Parts

    The Problem: Standard Parts Do Not Fit

    Problem Why It Happens The Real Cost
    It does not fit Standard sizes rarely match your equipment Leaks, premature failure, rework — 3-5x cost of a custom part
    Wrong material grade One grade for everything — not optimized for your media Short service life, frequent replacements — 5-10x cost over 3 years
    Poor performance Generic design — not engineered for your application Production downtime, safety risks — easily exceeds custom part cost
    Added cost Modify standard parts — or redesign your system Engineering time, manufacturing delays — $500+ per modification

    Comparison: Custom PTFE vs Standard vs Modified

    Cost & Performance Comparison

    Feature Standard PTFE Modified Standard Custom PTFE
    Fit Compromise — may not fit Fits after modification Perfect — built to your specs
    Installation May require rework Labor intensive Simple — direct fit
    Service Life Short — not optimized Moderate — improvement limited Long — engineered for your application
    Total Cost (3-Year) High — frequent replacements + downtime + rework High — modifications + replacements + downtime Lowest — one part, no issues
    Lead Time Immediate 3-5 days + work 5-7 days prototype
    Key insight: A standard PTFE part might cost $50. A custom PTFE part might cost $200. But if the standard part fails every 3 months and the custom part lasts 3 years, the custom part saves you money in the first year. Add downtime, labor, and rework? Custom wins every time.

    Applications

    Primary Industries

    Industry Application Recommended Grade
    Chemical Processing Valve seats, pump parts, reactor linings, pipe fittings Glass-filled or TFM™ modified
    Aerospace Seals, bearings, wire insulation — lightweight, wide temperature range Virgin PTFE, FEP, PEEK
    Semiconductor Wafer carriers, chemical handling, ultra-pure parts — high purity, cleanroom High-purity Virgin PTFE, PFA
    Medical & Pharma Surgical instruments, drug manufacturing lines — biocompatible, FDA-compliant Virgin PTFE, FDA/USP grades
    Oil & Gas Valve components, wellhead equipment, pipeline seals Glass-filled or carbon-filled PTFE
    Food & Beverage Conveyor parts, FDA-compliant seals, filling equipment Virgin PTFE (FDA-compliant)
    Industrial Machinery Bushings, bearings, wear components, guide rings Carbon-filled or bronze-filled PTFE

    Typical Custom Parts

    Seals & Gaskets

    Any shape, any size, custom geometries.

    Bushings & Bearings

    Sleeve bearings, thrust washers, flanged bushings.

    Valve Components

    Valve seats, plugs, balls, diaphragms.

    Electrical Insulators

    Standoffs, spacers, connector bodies.

    Piston Rings

    Compressor rings, guide rings, wear bands.

    Labware

    Beakers, test tubes, funnels, crucibles, custom dimensions.

    Complex Components

    Multi-feature parts, any shape you can draw.

    Material Grade Options

    Grade Best For Key Benefit Chemical Limit Cost
    Virgin PTFE Clean chemicals, FDA, low friction, general service Universal chemical resistance, lowest friction, FDA compliant Soft — lower wear resistance $
    Glass-Filled PTFE Abrasive media, high load, slurries 3-5x longer life in abrasives, strength Not for HF or strong alkali $$
    Carbon-Filled PTFE High speed, heat dissipation, dry running Thermal conductivity, low friction, anti-static Not for strong oxidizers $$
    MoS₂-Filled PTFE Sticky media, low torque, lubricity Enhanced lubricity, reduces friction further Not for oxidizing acids $$
    Bronze-Filled PTFE Extreme pressure, heavy load, severe wear Highest strength and wear resistance Not for acids or salt water $$$
    PEEK Extreme temperature, high load, radiation Highest strength, wear resistance — up to +250°C Very high cost, limited chemical compatibility $$$$

    Quick Selection Guide

    If Your Service Is... Choose...
    Clean chemicals, FDA, low pressure Virgin PTFE
    Abrasive media, slurries, high wear Glass-filled PTFE
    High speed, heat dissipation, anti-static Carbon-filled PTFE
    Sticky media, low torque, enhanced lubricity MoS₂-filled PTFE
    Extreme pressure, heavy load, severe wear Bronze-filled PTFE
    Extreme temperature, radiation, high precision PEEK
    Not sure? Send us your media, temperature, pressure We recommend

    Buying Custom PTFE Parts? Here Is What Engineers Compare First

    Real-World Applications

    Case Study 1: Custom Valve Seat — 6x Longer Life

    Challenge: A chemical plant had a non-standard ball valve size. Standard PTFE valve seats did not fit. The plant modified standard seats on-site, time-consuming, expensive, and sealing performance compromised. Leakage occurred every 3-4 months.

    Solution: Custom-machined PTFE valve seats to exact valve dimensions. Glass-filled grade for wear resistance in abrasive media.

    Result: Perfect fit. No modifications needed. Seats lasted over 2 years, 6x longer than modified standard seats. Eliminated $8,000/year in modification costs and downtime.

    Bottom line: 6x longer life, $8,000/year saved in modification and downtime.

    Case Study 2: Complex PTFE Component — Tight Tolerances Achieved

    Challenge: A semiconductor equipment manufacturer needed a complex PTFE component with ±0.02mm tolerance, multiple features, and ultra-high purity for cleanroom use. Standard PTFE could not meet the dimensional accuracy.

    Solution: Precision CNC machining with a temperature-controlled facility (68-72°F) to maintain dimensional stability. Stress-relief annealing applied to prevent cold flow. Virgin high-purity PTFE with full traceability.

    Result: Complex geometry achieved within tolerance. Zero contamination in cleanroom validation. Multiple repeat orders placed.

    Bottom line: ±0.02 mm achieved, cleanroom validated, repeat orders placed.

    Case Study 3: Large-Diameter Custom Gasket — No Seam, No Leak

    Challenge: A chemical plant needed a PTFE gasket for a 2000mm diameter glass-lined flange. Standard gaskets unavailable in this size. Custom-cut gaskets from sheet were too expensive and had seam weaknesses.

    Solution: Compression-molded custom PTFE gasket to exact 2000mm diameter, optimized thickness for glass-lined flange protection.

    Result: One-piece molded construction — no seams. Perfect fit. No damage to glass-lined flange. The gasket operated leak-free for 18 months and counting.

    Bottom line: 2000 mm one-piece molded, no seam, 18 months leak-free.

    Note: Actual case results vary by application conditions. Contact us for application-specific recommendations.

    Taifno PTFE factory production area
    PTFE production area.
    Taifno PTFE molding equipment
    Molding equipment.
    Taifno PTFE batch control
    Material handling and batch control.
    Taifno finished stock
    Finished stock.

    Technical Specifications

    PTFE Material Properties

    Density2.15–2.20 g/cm³
    Tensile Strength20–35 MPa
    Elongation at Break250–500%
    Friction Coefficient0.04–0.20
    HardnessShore D 55–65
    Water Absorption<0.01%
    Continuous Service Temp-180 °C to +200 °C
    Short-Term Service TempUp to +300 °C
    Chemical ResistancepH 0-14 (except molten alkali metals, fluorine compounds)
    Dielectric Strength15–50 kV/mm

    Dimensional Capabilities

    Parameter Capability
    Machined Parts — CNC Turning Up to 600 mm diameter × 1200 mm length
    Machined Parts — CNC Milling Up to 600×400×300 mm
    Molded Parts — Compression Molding Up to 3300 mm diameter
    Minimum Wall Thickness Down to 0.8 mm (machined)
    Tolerance — Standard ±0.05 mm
    Tolerance — Precision ±0.02 mm
    Surface Finish 0.8–3.2 μm Ra (polishing for finer finishes)

    Quality Assurance

    100% Virgin Resin Material

    No regrind, no recycled material. Consistent quality, batch after batch.

    Full Traceability

    Every batch traceable from raw material to finished product. Material certificates available on request.

    Precision Machining

    Components precision-machined to tight tolerances using advanced CNC equipment.

    ISO 9001:2015 Certified

    Manufacturing processes certified under ISO quality management systems.

    FDA-Compliant Grades

    Virgin PTFE and select grades meet FDA 21 CFR 177.1550 requirements.

    Free DFM Support

    We evaluate your design and recommend geometry or material alternatives for lower cost — same function, better manufacturability. Included with every quote.

    Prototype to Production

    Single prototype to high-volume production — all supported. Lead time: 5-7 days prototype, 7-15 days production.

    PTFE material testing
    Material testing.
    PTFE dimensional inspection
    Dimensional inspection.
    PTFE batch traceability
    Batch traceability records.
    PTFE final quality check
    Final quality check.

    FAQ

    What do you need to quote custom machined PTFE parts, and how long does it take?

    Four things: (1) Drawing or sketch: 3D (STEP/IGES), 2D (PDF), or even a hand sketch with key dimensions. (2) Material grade: we recommend if unsure. (3) Quantity: prototype, small batch, or production. (4) Application: temperature, media, pressure (so we can recommend the right grade).

    Quote turnaround: 24 hours. Prototype lead time: 5-7 days. Production lead time: 7-20 days. Shipping: Air 5-15 days; Sea 15-30 days.

    What tolerances can you achieve, and how much does custom cost?

    Standard tolerance: ±0.05 mm. Precision: ±0.02 mm. Costs depend on complexity, size, material, tolerance, and quantity.

    Cost comparison: A standard part might cost $50. A custom part might cost $200. But if the standard part needs replacing every 3 months, the custom part pays for itself in the first year. We help optimize your design to reduce cost — free DFM feedback with every quote. No hidden fees. Full transparency.

    What are the limits and how do you help me avoid mistakes?

    Temperature: -180°C to +200°C (up to +300°C short-term).

    Chemical limits: Virgin PTFE not for molten alkali metals or fluorine. Glass-filled not for HF or strong alkali. Carbon-filled not for strong oxidizers.

    Most common mistakes: Designing for injection molding (PTFE cannot be injection molded), specifying tolerances too tight (adds cost), or choosing the wrong grade for your media.

    We help you avoid these, free DFM review with every quote. We evaluate design, confirm compatibility, recommend the right grade, and suggest geometry alternatives for lower cost.

    Send Your Drawing — Get a 24-Hour Quote and Free DFM Review

    Upload your 3D STEP/IGES, 2D PDF or hand sketch together with media, temperature, pressure and quantity. Taifno's engineers will confirm the right PTFE grade — virgin, glass-filled, carbon-filled, MoS₂-filled, bronze-filled or PEEK — check manufacturability, and return a factory-direct quote within 24 hours. Prototypes ship in 5-7 days; free samples are available for evaluation before bulk ordering.

    • ±0.02 mm precision CNC, molded parts up to 3300 mm diameter
    • FDA 21 CFR 177.1550 grades and full material traceability
    • Free DFM feedback, no mold cost for machined parts
