PTFE Packing Set
  • PTFE Packing SetPTFE Packing Set
  • PTFE Packing SetPTFE Packing Set
  • PTFE Packing SetPTFE Packing Set

PTFE Packing Set

Choose Taifno for high-quality PTFE packing sets; we are a Chinese manufacturer with over 20 years of industry experience. Designed specifically for dynamic shafts, this product automatically compensates for wear and re-tightens itself, offering a service life of several years while effectively withstanding pressure, movement, and chemical media.
    Rating: 5.0
    (Rating Count: 1)

    PTFE Packing Set for Valve Stems, Pumps and High-Pressure Stuffing Boxes

    The PTFE packing set manufactured by Taifno consists of a set of PTFE sealing rings, including a top adapter ring, V-shaped intermediate rings, and a bottom adapter ring, designed for installation in a stuffing box. It is suitable for a temperature range of -180°C to +200°C, withstands pressures up to 500 bar, covers a pH range of 0–14, and supports linear speeds of up to 5 m/s.

    Temperature-180 °C to +200 °C
    PressureUp to 500 bar
    pH Range0–14
    SpeedUp to 5 m/s
    PTFE Packing Set

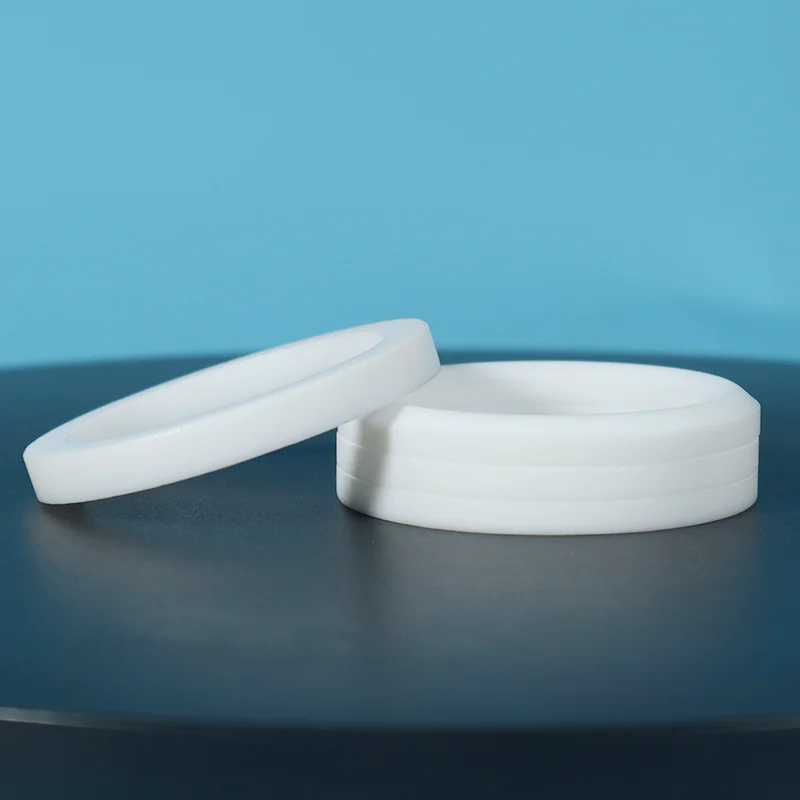

    PTFE packing set with top adapter ring, V-shaped intermediate rings and bottom adapter ring.
    PTFE Packing Set

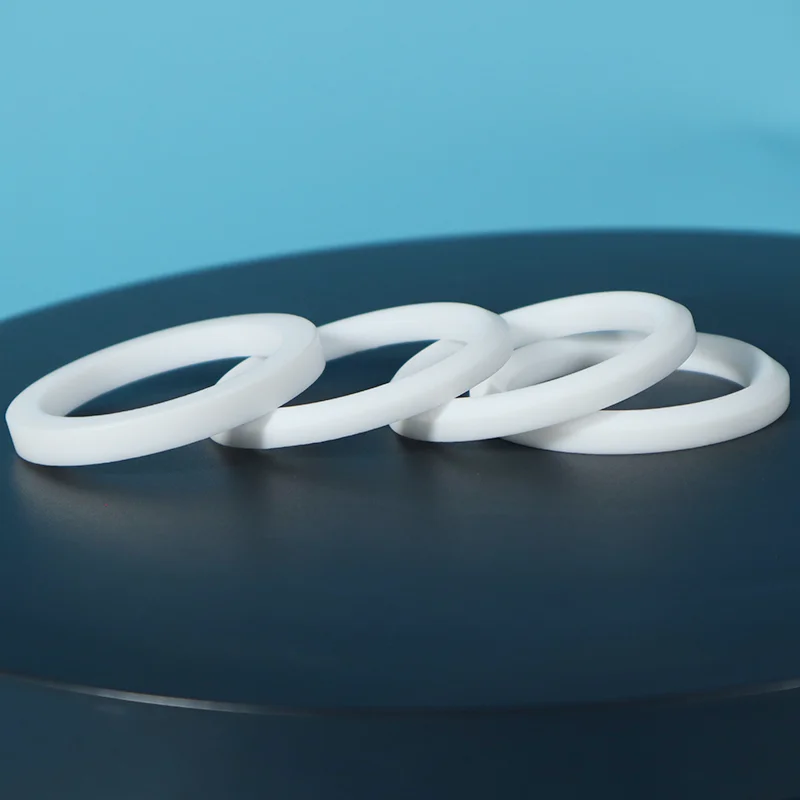

    V-ring geometry designed for pressure-energized dynamic sealing.

    Why Choose PTFE Packing Set?

    The PTFE V-ring packing set is engineered for moving shafts and high-pressure stuffing boxes, where O-rings and rubber seals fall short. Every failure mode of an O-ring maps to a specific advantage of the packing set.

    O-Ring Problem Leaks on moving shafts
    Why It Happens

    O-rings are static seals — designed for fixed grooves, not shaft movement.

    How Packing Set Fixes It

    V-rings are dynamic — seal lips move with the shaft.

    O-Ring Problem Cannot be adjusted
    Why It Happens

    Once installed, sealing force is fixed.

    How Packing Set Fixes It

    Re-tighten the gland nut as wear occurs — no disassembly.

    O-Ring Problem Fails in chemicals
    Why It Happens

    Rubber swells, hardens, or degrades.

    How Packing Set Fixes It

    PTFE is chemically inert — pH 0-14.

    O-Ring Problem Replaced every few months
    Why It Happens

    Compression set — rubber takes permanent deformation.

    How Packing Set Fixes It

    PTFE has no compression set — lasts years.

    O-Ring Problem Temperature limited
    Why It Happens

    Rubber hardens in cold, softens in heat.

    How Packing Set Fixes It

    -180°C to +200°C — cryogenic to sterilization.

    The O-Ring Problem

    Three Core Advantages

    01

    Adjustable Sealing Force

    O-rings are fixed — once installed, sealing force cannot be adjusted. PTFE packing sets are re-tightenable. As the packing wears over time, simply tighten the gland nut to restore sealing performance. No need to disassemble.

    02

    Dynamic Sealing for Moving Shafts

    O-rings are static seals — they seal in one fixed groove and fail when the shaft moves. PTFE V-rings are designed specifically for reciprocating and slow rotary motion — seal lips move with the shaft, maintaining contact under pressure.

    03

    Pressure-Energized Sealing

    The V-shaped geometry is engineered to be pressure-energized: as system pressure increases, it forces the sealing lips more firmly against the rod and housing, automatically enhancing sealing effectiveness.

    Material Advantage

    Property PTFE Packing Set
    Chemical Resistance pH 0-14 — virtually universal
    Temperature Range -180°C to +200°C
    Coefficient of Friction 0.05-0.20 — lowest of any solid material
    Self-Lubricating Yes — no external lubrication required
    FDA-compliant grades Available on request
    Compression Set None — PTFE does not set like rubber

    Comparison: Packing Set vs O-Ring vs Composite Seal

    Feature PTFE V-Ring Packing O-Ring PTFE Composite Seal
    Sealing Type Dynamic — built for moving shafts Static — fixed groove only Dynamic — high speed
    Adjustable? Yes — re-tightenable No — fixed No — fixed
    Temperature Range -180°C to +200°C Rubber limited -180°C to +200°C
    Pressure Range Up to 500 bar Moderate Up to 500 bar
    Chemical Resistance ★★★★★ ★★☆☆☆ ★★★★★
    Shaft Movement Tolerance High — handles misalignment Poor — fails on moving shafts Moderate — alignment sensitive
    Lifespan in Harsh Service Years Months Years
    Cost (Initial) $$$ $ $$$
    Cost (Total Ownership) Lowest Highest Moderate
    Application Heavy-duty, low speed, harsh conditions Static sealing only High speed, low friction

    Applications

    Primary Industries

    Industry Application
    Chemical Processing Valve stems, chemical pumps, reactors — acids, solvents, caustics
    Oil & Gas Control valves, gate valves, BOPs — NACE/API grades available
    Pharmaceutical Sterile processing, drug manufacturing — FDA/USP grades available
    Food & Beverage Hygienic valves, filling equipment — FDA-compliant pure PTFE
    Power Generation High-temperature steam systems, turbine seals
    Semiconductor High-purity chemical distribution, cleanroom equipment
    General Industrial Hydraulic presses, injection molding machines, compressors, mixers, agitators

    Typical Equipment

    Control and isolation valves
    Gate valves, ball valves, globe valves
    Reciprocating pumps
    Centrifugal pumps (slow rotary)
    Hydraulic cylinders and actuators
    Compressors
    Mixers and agitators
    Forging presses, injection molding machines
    Taifno PTFE factory production area
    PTFE production area.
    Taifno PTFE molding equipment
    Molding equipment.
    Taifno PTFE batch control
    Material handling and batch control.
    Taifno finished stock
    Finished stock.

    Buying a PTFE Packing Set? Here Is What Engineers Compare First

    Real-World Applications

    Case Study 1: Chemical Plant Valve Stem Packing

    Challenge: A chemical plant handling aggressive acid at 150°C replaced O-rings on control valve stems every 2-3 months — causing costly downtime and safety concerns.

    Solution: PTFE V-ring packing set with carbon-filled grade. Installed with recommended torque specifications.

    Result: Zero leakage for 18 months. Packing re-tightened twice during scheduled maintenance. 80% reduction in maintenance costs and downtime.

    Case Study 2: Slurry Pump Packing

    Challenge: A slurry pump handling abrasive media wore out standard packing every 4-6 weeks, requiring frequent production interruptions.

    Solution: Glass-filled PTFE packing set with anti-extrusion rings.

    Result: Packing set lasted 8 months — 8x longer than previous solution. Maintenance intervals extended. Production uptime significantly improved.

    Case Study 3: Fugitive Emissions Compliance

    Challenge: A natural gas processing facility needed to meet ISO 15848 fugitive emissions standards on critical control valves.

    Solution: PTFE-based low emission packing set with proprietary lubrication package, tested to ISO 15848.

    Result: Passed emissions compliance. Leakage rates well below allowable limits. Long-term performance verified through continuous monitoring.

    Note: Actual case results vary by application conditions. Contact us for application-specific recommendations.

    Technical Specifications

    PTFE Packing Set Properties

    Temperature Range-180 °C to +200 °C (PTFE), up to +315 °C (modified grades)
    Operating PressureUp to 500 bar (50 MPa) — depends on design and back-up rings
    Maximum Speed< 5 m/s (reciprocating)
    pH Range0-14 (excluding molten alkali metals, fluorine compounds)
    Material OptionsVirgin PTFE, Carbon-filled, Glass-filled, MoS₂-filled
    StandardsAPI 6A, NACE, NORSOK M-710 (available)
    Diameter RangeCustom: 3 mm to 1000 mm+

    Material Grade Options

    Grade Best For Limit
    Virgin PTFE Clean chemicals, FDA applications, general service — lowest friction Lower wear resistance — not for abrasives
    Carbon-filled PTFE High speed, heat dissipation, low friction — where heat builds up Not for strong oxidizers
    Glass-filled PTFE Abrasive media, high load, wear resistance — where particles are present May score soft shafts — use hardened shaft or sleeve
    MoS₂-filled PTFE Sticky media, low torque, enhanced lubricity — where media sticks Not for oxidizing acids

    Quality Assurance

    100% Virgin PTFE Material

    No regrind, no recycled material. Consistent quality, batch after batch.

    Full Traceability

    Every batch traceable from raw material to finished product. Material certificates available on request.

    Precision Molding

    Each packing ring is precision molded or machined to tight tolerances.

    Installation Guidance

    Detailed installation instructions and torque specifications with every order.

    ISO Quality System

    Manufacturing processes follow international quality standards.

    FDA Grades Available

    FDA-compliant and USP Class VI grades for food and pharmaceutical applications.

    PTFE material testing
    Material testing.
    PTFE dimensional inspection
    Dimensional inspection.
    PTFE batch traceability
    Batch traceability records.
    PTFE final quality check
    Final quality check.

    FAQ

    What is PTFE Packing Set and how does it work?

    It is a stack of PTFE rings, top adapter, V-shaped middle rings, bottom adapter, installed in a stuffing box.

    When the gland nut is tightened, the V-rings expand radially against both the shaft and housing. System pressure further energizes the sealing lips, tighter seal as pressure rises. Self-energizing. Re-tightenable as wear occurs.

    Packing set vs. O-ring, when should I switch?

    Switch when O-rings keep failing, on moving shafts, under pressure fluctuations, or in aggressive chemicals.

    O-rings are static, they seal in fixed grooves. Packing sets are dynamic, adjustable, re-tightenable, and built for moving parts.

    Cost comparison: O-rings cost less upfront. But if you replace them every 3 months, one packing set that lasts 3-5 years saves you a large amount of US dollars in parts, labor, and downtime.

    What are the limits and the most common installation mistake?

    Temperature: -180°C to +200°C (up to +315°C modified). Pressure: up to 500 bar. Speed: < 5 m/s.

    Most common mistake: over-tightening the gland. PTFE is soft, excessive compression causes cold flow, deforms rings, and creates leakage instead of sealing. Use a torque wrench. Tighten in increments.

    Follow our installation guide, included with every order.

    Not Sure If a PTFE Packing Set Fits Your Stuffing Box?

    Send your shaft diameter, stuffing box dimensions, media, temperature, pressure and speed. Taifno's engineers will confirm the packing set configuration — top adapter, number of V-rings, bottom adapter — and the right material grade (virgin, carbon-filled, glass-filled or MoS₂-filled), usually within one working day.

    • -180 °C to +200 °C, up to 500 bar, pH 0-14, up to 5 m/s
    • API 6A, NACE, NORSOK M-710 grades available
    • Factory-direct pricing and free samples
